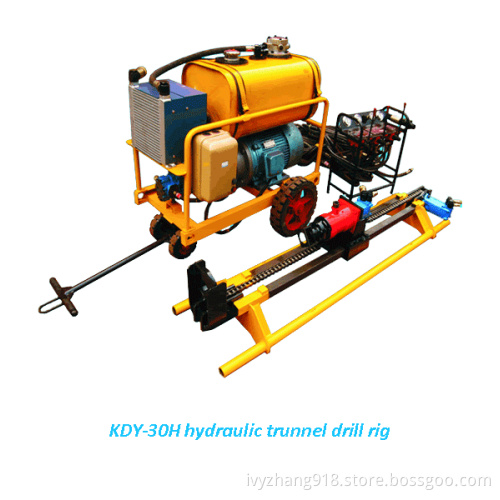

Kdy-30h Three Speeds Trunnel Drilling Rig with Diamond Bit

APPLICATIONS:
KDY-30H hydraulic drill rig is a multi-function drill rig developed facing drilling grouting hole for hydro-power station. It also can be used for drilling the hole of support, penetration-proof, blasting; And treating dangerous rock and hillside. It is mainly suitable for drilling hard rock with diamond bit and PDC bit, and DTH drilling as well.

MAIN FEATURES:
· Reasonable specification, assure more efficiently drilling;
· Fully hydraulic drive, top-drive head rotation, feed and hoist are all done by ration pump and ration motor which composite independent open hydraulic system, it is simple, advance, easy to use and maintain;
· The main hydraulic components are from world famous hydraulic manufacturers, two-step filtering, to assure the reliability of the hydraulic system;
· Newly-designed structure, three speeds, and can get different speeds through changing oil motor of top-drive head, to satisfy the needing of different drilling technology;
· Light weight, easy to move, re-assembly and maintain. Especially suitable for drilling in tunnel and on the frame.
Technical Specifications
SPECIFICATIONS:
Drilling method: Diamond drill bit, PDC bit, and DTH drilling
Drilling capacity: 30 m(hole dia.: Φ 75 mm); 20 m (hole dia.: Φ 91 mm)
Drill rod: Φ 42 x 1000 mm or Φ 50 x 1000 mm
Top-drive head: Stroke: 1200 mm;
Max. Push/pull force: 14 kN;
Feed and hoist speed: 0-0.3 m/s.
Hydraulic system: Triple-gear pump, ration motor
Power unit: Electric motor Y180M-4 (speed: 1470 r/min; Power: 18 kW)
Mast height: 2100 mm
Detachment weight: Mast and top-drive head 135 kg; Control panel 50 kg; Wheeled power station 280 kg
