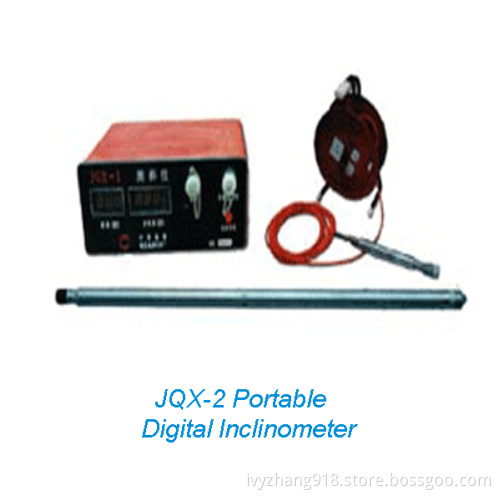

Jqx-2 Vertex and Azimuth Measurement Digital Inclinometer

Main Applications and Features

Digital inclinometer is a new high-precision inclinometer system which consists of ground instrument, probe, cable and other components. It is widely used in measurement of vertex and azimuth for various types of geological drilling.
· Widely used in measurement of vertex and azimuth for various types of geological drilling.
· Direct-reading of vertex and azimuth
· Digital display, point measurement or continuous measurement
· Simple, reliable operation,

Main Technical Specifications

· Vertex Coverage: 0~60°
· Vertex Accuracy: ≤ 0.1°
· Azimuth Coverage: 0~360°
· Azimuth Accuracy: ± 4° (Vertex ≥ 3° ), ± 6° (2° ≤ Vertex ≤ 3° )
· Working Temperature: 0~85
· Probe Outline Dimension: φ 42× 1000 mm
· Ground Instrument Dimension: 240× 95× 140mm
· Probe Weight: 2 Kg (weighing bar 5 Kg)
· Probe Downhole Length: ≤ 1000
