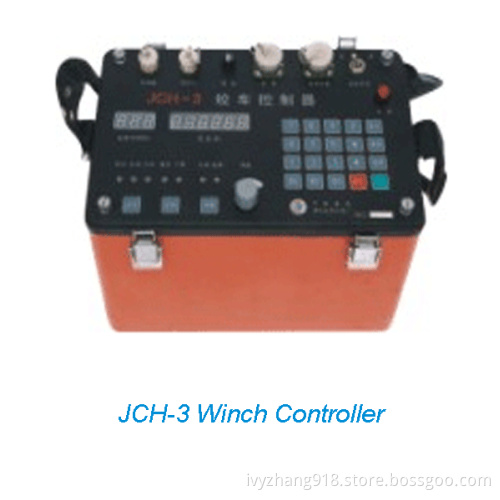

Jch-3 Automatic Calculate Winch Controller

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing
Payment Type:	L/C, T/T

Product Description

Main Applications and Features

· Adopt advanced frequency conversion technology to control the winch
· Automatic constant speed and manual speed control, automatic overload protection
· Automatic addition and subtraction to calculate the depth, with depth error automatic compensation.
· Use of commercial power or AC power generator
· Self-locking function while winch ascending and descending
· Steady in velocity without jitter in full speed range

Technical Specifications

· Speed Range: 1~29.9 m/min
· Depth Error: ≤ 0.4‰
· Depth Range: 0~9999.99 m
· Power Supply: AC220V± 10% 50Hz ± 5%
· Continuous Working Time: ≤ 24 hr
· Depth Pulse Equivalent: 0.25mm/pulse
· Working Temperature: -10~ +70
· Volume: 305× 200× 220mm,
· Weight: <3kg
· Power Consumption: <1.5kW
· Constant Speed Range: 0.5~20m/min, Error: ± 10%, ± 1 digit
· Main Parameter Table for Winch Series

Parameters	3000metersfrequency control	2000metersfrequency control winch	1000metersfrequency control winch	300metersfrequency control	500metersfrequency control winch
type	JCH-3000	JCH-2000	JCH-1000	JCH-300	JCH-500
D imensions	940×800×720	920×680×700	710×620×670	560×490×360	540×400×380
Weight	150 kg	120 kg	110 kg	25 kg	18 kg
M otor Power	2.2 kw	1.5 kw	1.1 kw	manual	manual
Pulse Number	1 circle per 4000	1 circle per 4000	1 circle per 4000	1 circle per 4000
Reelable L ength	3100 M	2200 M	1200 M	360 M	700 M
					370 (Φ7mm rubber cable)
Core Number	6 core	6 core	6 core	6 core	6 core
C able Insulation: more than 10 M Ohm
