CD-2 Medium-Shallow Core Water Well Drilling Rig

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing
Payment Type:	L/C, T/T

Product Description

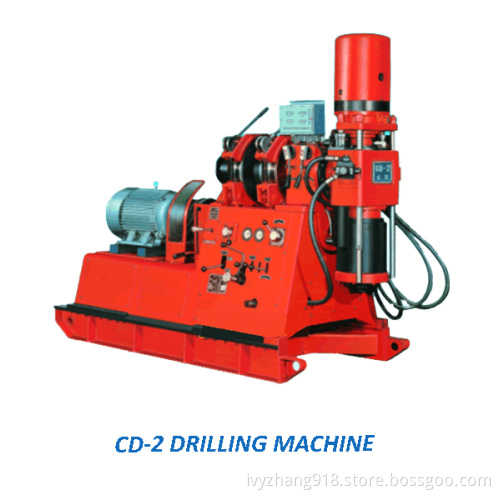

CD-2 drilling machine is a newly designed medium-shallow deep core drilling rig, this kind of drilling machine has three typies, .

APPLICATIONS:
Mainly used in geology drilling, also engineering geology drilling, water well drilling, hydrographic drilling and large diameter, grouting hole drilling. Compact structure, lightweight, easy to operate. The machine is equipped with upper and lower hydraulic chucks automatically running back without stopping in drilling. Drilling efficiently, decrease accidents
L Digital meter for speeds, drilling rate, drilling pressure, mud pressure, directly observed.
L Dished spring-lever hydraulic chuck, working safely, long working life.

drilling capacity (m)		500
spindle speed (r/min)	forward	69;120;189;261;326;567;895;1235
	reverse	54;255
max torque (Nm)		3210
angle range		0-90°
spindle max pull force (KN)		70
spindle max push force (KN)		50
spindle stroke (mm)		400
hoist max lift capacity with single rope (KN)		30
Oil pump		CBK1012-8-B3F
power unit	electric motor	Y180L-4 22KW
	diesel engine	395K2 19.85KW
overal dimensions (L×W×H)(mm)		2250×950×1850
drill body weight(excluding power)(kg)		1200
