Drilling Borehole Wall Imaging System

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing, China
Payment Type:	L/C, T/T, Western Union

Product Description

Drilling Borehole Wall Imaging System

Main application:

Stratum structure divide
Well wall stratum crack
Karst development discrimination
Distinguish fractured development zone
Determine the karst distribution position
Long time underground borehole monitoring

Features:

Real time video, collect, record
Clearly image show on ground instrument
Vertical drilling hole, horizontal drilling hole, arbitrary drilling hole
Widely used in water well, oil field, coal field, engineering geology, dam, reservoir,
Oceaneering

System component:

Ground displayer, logging probe, electrical winch with cable, Sony DVR, Wellhead pulley

No.	Accessories	Dimension	Specification
1	Camera	Dia:80mm	a. SONY inductor 1/3'' CCD b. Horizontal resolution 850lines c. Camera:360ºrotary
2	Probe	Length 470mm	a. Front lens are imported resins b. Pressure is 16-30Mpa (can be under 3000m deep water) c. 9LED Lights

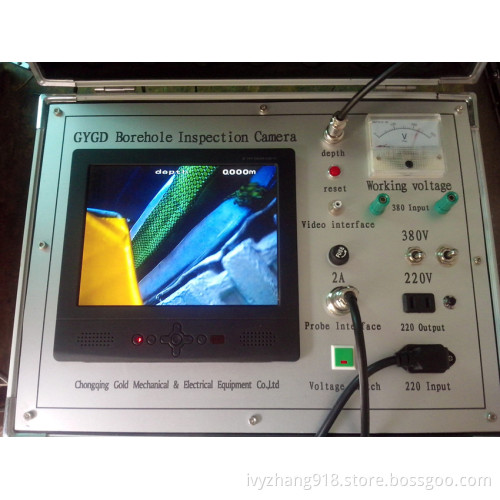

3	Controller		a. 220V/380V/12V optional b. LCD display can be 8/15inches c. Aircraft grade aluminum alloy
4	Winch		Manual/Electrical Winch
5	Cable	Diameter:4mm Length:100-2000m	a. With steel wire b. Tension is 150kg c. Destroy tension is 260kg
6	Wellhead pulley		With counter
7	DVR (optional)		SD card
