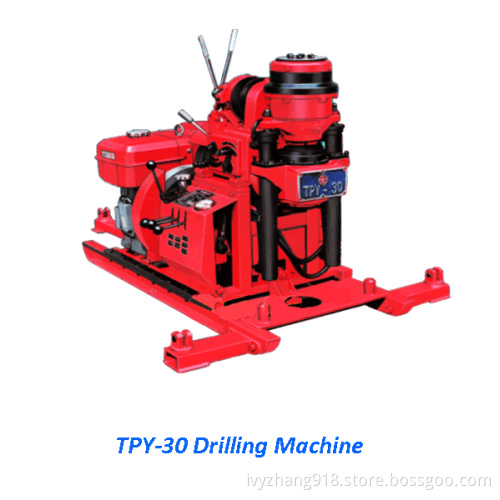

Tpy-30 Hydraulic Feed Shallow-Hole Drilling Rig

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing
Payment Type:	L/C, T/T

Product Description

APPLICATIONS

TPY-30 drilling machine is a type of shallow-hole drilling machine for exploration, it is suitable for drilling in soil, sand soil and medium harden rock drilling. It can be used not only in both explosion hole drilling for petroleum survey and core drilling for engineering geological exploration, but also in foundation exploration of industrial and civel buil dings, and grout hole drilling for reservoir and dam.

FEATURES:

Light, good detachability, easy moving, suitable for mountainous area.
Mechanical transmission, hydraulic feed, equipped with hydraulic chuck, increase drilling efficiency, reduce labour strengthness.
Hydraulic retraction to let the drill body away from the hole, easy lifting and lowering the drilling tools.
Perfect performances, simple and compact design, easy operation.
Largely powered, reasonable speed range, suitable for various drilling methods.
Equipped with light and detachable aluminium alloy derrick.

Drilling capacity	Hole dia	Φ75mm,Φ110mm
	Depth	25m,30m
Rotation table speeds	110;234;332
Rotation table output torque	0.326
Max pull force	20
Feed stroke	350
Retraction stroke	220
Single rope max lift force	3.43
Hoisting speeds (the second layer)	0.58;1.15;1.78
Oil pump	CBW-F203-AFPL
Drill body Weight (excluding power unit) (kg)	240
Overal dimensions(LWH)	1270624890
Power unit	Diesel engine	Model	R185A
		Power	6.25
		Speed	2400
	Electric motor	Model	Y132S1-2
		Power	5.5
		Speed	2900
