Xy-2 Light Weighted Geological Exploration Drilling Rig

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing
Payment Type:	L/C, T/T

Product Description

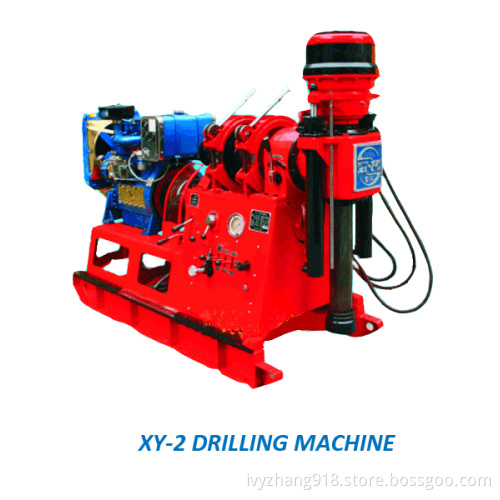

XY-2 hydraulic feed core drill is small and light weighted, mainly used in shallow and medium deep diamond tungsten carbide core drilling, can also be used in engineering geological, hydrogeological, water well and pile grouting hole drilling.

Drilling capacity(m)	Φ73 rod	100
	Φ60 rod	200
	Φ50 rod	380
	Φ42 rod	530
Spindle speed(r/min)	Forward	65;114;180;248; 310;538;849;1172
	Reverse	51;242
Max torque (Nm)		2760
Angle reange		0-90°
Spindle max pull force(KN)		60
Spindle stroke (mm)		600
Hoist max life capacity with single rope (KN)		30
Spindle inner dia (mm)		76
Oil pump		SCB32/12
Power unit	Electric motor	Y180L-4,22Kw
	Diesel engine	395K2,19.85Kw
Inner dia of spindle (mm)		2150×900×1690
Drill body weight (excluding power)(kg)		950
