Product Description

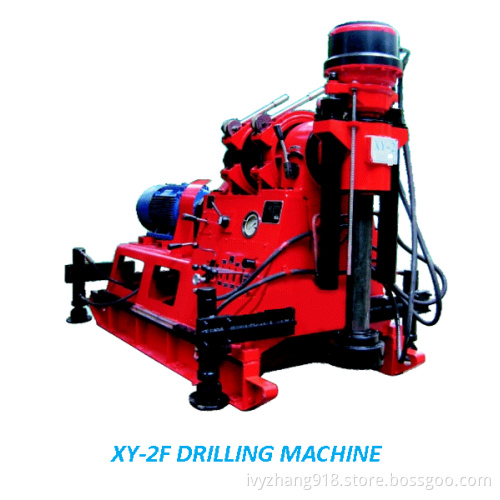

XY-2F Mobile core drill rig is derived from XY-2 drill rig, it can move conveniently because adding walking device base on XY-2 rig. It is small and light-weighted, mainly used in shallow and medium deep diamond and tungsten carbide core drilling, can also be used in soil anchoring hole, anchoring bar and engineering geological, hydro-geological, water well and pile grouting hole drilling. It's light weight, compact, good quality, powerful, wide performance, good versality.

Drilling capacity(m)	73 rod	100(300 mm hole dia.)
	60 rod	320
	50 rod	380
	42 rod	530
	AQ wire line rod	565
	BQ wire line rod	460
	NQ wire line rod	350
Spindle speed(r/min)	Forward	65;114;180;248;310;538;849;1172
	Reverse	51;242
Max torque (Nm)		2900
Angle range		0-90°
Spindle max pull force(KN)		60
Spindle stroke (mm)		600
Hoist max life capacity with single rope (KN)		30
Stroke of walking device		450mm/stroke
Spindle inner dia (mm)		Φ76
Oil pump		CBK1020/8Twin-geal oil pump
Power unit	Electric motor	Y180L-4,22Kw
	Diesel engine	395K2,19.85Kw
Dimension(mm)		2150×900×1690
Drill body weight (excluding power)(kg)		950
