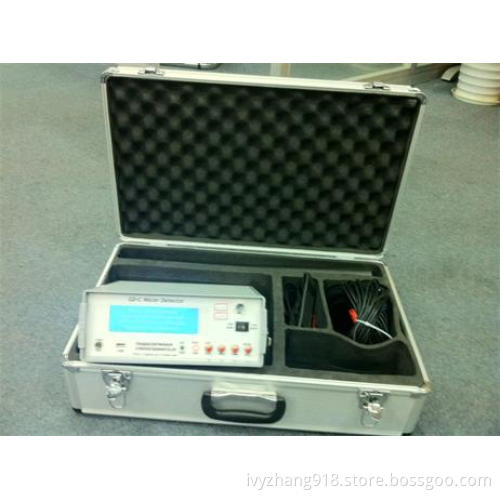

Gd-C Portable Ungerground Water Detector

GD-C Portable Ungerground Water Detector

Application:

U Metal and non-metal ore survey

U Decrease mineral invest venture and increase exploration success rate

U Underground water detect

U Meet demand of drinking water, industrial usage and agricultural irrigation.

U Engineering geological prospect and disaster geological detect

U Coal goaf, archaeological mining, city exploration and non-metal pipe survey

Main features:

U Fast and high efficiency

U Easy to carry

U Easy operation

U Good precision and high accuracy

U Very practical and low cost

U Flexible array— Traditional and unique array method

Technical parameters:

1. It can store 20 curves' measuring data of "Two-pole profile", "Two-pole sounding" and "Annual profile" measurement.

2. Data and abnormal curves can be introduced by a 4G U-disk storage to computer with the USB port, which is very convenient for data analysis.

3. Power supply: By 4 dry batteries or 4 rechargeable batteries.

4. Measuring range: 0.001mV~2550mV (auto range transfer)

5. Resolution: 0.001mV

6. Measuring accuracy: ± 2% ± 3 LSB

7. Input impendence: ≥ 10MΩ

8. Working temperature: -10° C~+50° C

9. Working humidity: 95%

10. Whole weight. 1.5kg, size: 24cm*13cm*16cm.
