Ground Water Detector High Power DC IP Measuring System

Metal detector DJF-2 5/10/15kw High Power DC IP Measuring System
Ground water detector High Power DC IP Measuring System


Main Applications and Features
High Power Direct Current IP Measuring System includes: Receiver, time domain IP transmitter, rectification power, simulator and dummy load. The system is a high-tech product which integrated with geophysics, electronics, computer technology, information processing technology, aiming to hydro-geological, mineral geology, engineering geology, energy, geology, environmental geology applications.
For large areas of metal mining, non-metallic mineral resources, geological survey and detailed survey work, search for groundwater and other hydrological and engineering geological exploration.
The system transmitter has two synchronization mode (domestic initiation): Delay synchronization after pulse and high-precision quartz clock synchronization, which allows high efficiency of field production, also convenient and flexible.
System Composition
One 5/10/15KW High Power Direct Current IP Transmitter
One 5/10/15KW High Power Rectifier Power Source
One or more DJS-8B Direct Current IP Receiver
Electrodes AB, Power Lines AB, Measuring Electrodes, and other related accessories

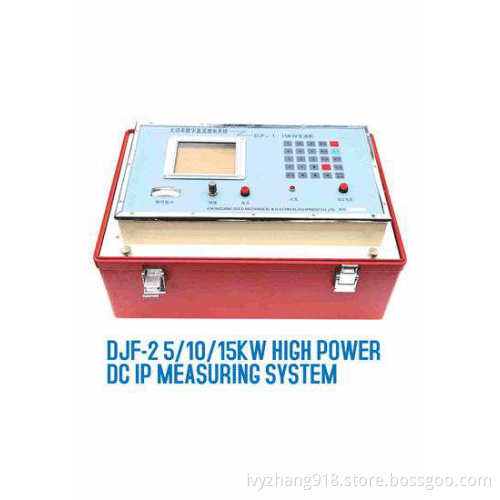

DJF-2 5/10/15kw Transmitter

Auto time travel, with regular current storage function to facilitate future resistance calculation
Micro-computer controlled, large-screen LED to display output voltage and current, touch panel.
Provide with RS-232 serial interface to facilitate the transferring of current data
High voltage, high current, with over-voltage and over-current protection and circuit-opening attention
