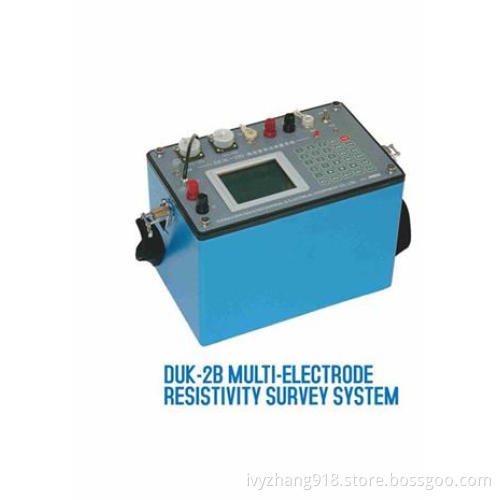

Underground metal finding Multi-Electrode Resistivity Survey System DUK-2B
Main Applications

Widely used for high-resolution research, tomography and monitoring applications.
Coal mining gobs, caves of Custer area, geological disasters survey like landslides other geological disasters.
High resolution engineering geological exploration like factory foundations, highways, bridges, railways, civil engineering, hydrology, engineering, environmental.
For landslides and other geological disaster exploration.
Metal and non-metallic mineral resources exploration and geothermal exploration


Technical Specifications
Conversion Electrodes: 60 channels
Voltage Measuring Range: ± 6V
Voltage Measuring Accuracy: 0.5%, ± 1 digit
Measuring Voltage Resolution: 1μ V
Current Measuring Range: 1μ A~2000mA, 1μ A~6000mA (two taps)
Measuring Current Resolution: 1μ A
Measuring Current Accuracy: 0.5%, ± 1 digit
Maximum Power Supply Voltage: 500VDC
Maximum Power Supply Current: 2A
Measured Apparent Polarizability Accuracy: ± 1%, ± 1 digit
SP Compensation Range: 1000mV
Input Impedance: 20 MΩ , 100 MΩ (two taps)
Suppression on 50Hz Power Frequency: Better than 80dB
Storage Capacity: 1MB
Power Supply: 1# cell, 8 pcs; Or external 12V battery (cells to be taken out when use the battery)
Power Consumption: 250 mA (Standby)
Working Temperature: -10° C~ +50° C, 95%Rh
Weight: 8.5 kg
Volume: 324× 240× 245mm
