Drill Machine Xy-2PC Soil Testing Drilling Rig for Construction

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T

Product Description

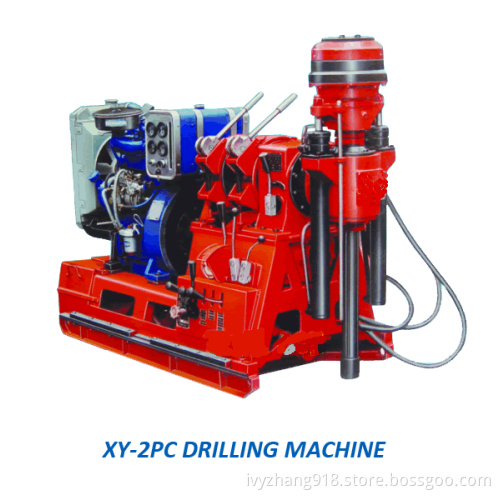

Drill machine XY-2PC Soil Testing Drilling Rig For Construction

1. APPLICATIONS:
The drillrig is used in tunnel drilling, geological prospecting, also suitable for geological drillings of building, hydroelectric power-station, highway, roadway and harbor and drilling pile grouting hole.

2. FEATURES:
The drill has such features as small body, light weight; Especially available for construction of hydroelectric power-station. It can get two series of speeds by means of substitution of one pair of helical gears for other one.

Looking forward to your inquiry!

Drill Capacity(m)	Φ50 drill rod	150
	Φ43 Wire line drillrod	300
spindle speed (r/min)	Forward	81;164;298;334;587;1190
	reverse	98;199
Max torque(Nm)		1110
angle range		0-90°
Max spindle pull force (KN)		45
spindle stroke		500
hoist max lift capacity (singlerope) (KN)		20
oil pump		CB32 gear oil pump
Power unit	diesel engine	295D 13.2KW
	electric motor	YD180L-4/8 17/11KW
drill body weight(excluding power)(Kg)		650
overal dimensions(L×W×H)(mm)		1720×800×1300
