Product Description
Product Description

Product Description

Main application:

Stratum structure divide
Well wall stratum crack
Karst development discrimination
Distinguish fractured development zone
Determine the karst distribution position
Long time underground borehole monitoring

Features:

Real time video, collect, record
Clearly image show on ground instrument
Vertical drilling hole, horizontal drilling hole, arbitrary drilling hole
Widely used in water well, oil field, coal field, engineering geology, dam, reservoir,
Oceaneering

System component:

Ground displayer, logging probe, electrical winch with cable, DVR, Wellhead pulley
No. Product Configurations Dimension Specification
1 Probe Dia.: 80mm Length: 470mm (1) Front lens are imported resins,
(2) Not easy damaged
(3) Pressure is 16-30Mpa
(can be under 3000m deep water)
(4) Light: 6-12 LED Lights
2 Camera   (1) SONY inductor 1/3' ' CCD
(2) Image definition is HD 750 TVL
(3)Watertight
(4) Camera Angle: 180/360 degree
3 Professional logging cable Length:
0-2500m(optional)
(1) With steel wire,
(2) Tension is 150kg,
(3) Destroy tension is 260kg

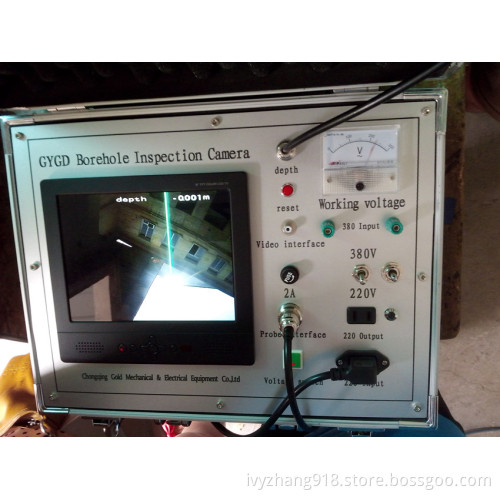

4 Main Control Host   (1) 220V/380V/12V optional.
(2) LCD dispaly can be 8/15inches.
(3) Aircraft grade aluminum alloay material
5 Downhole Pulley   Can change the booth size according to the well mouth size
6 Logging Winch   Hand/Electrical winch
7 Video save   (1) DVR with SD card (optional)
(2) Discs and U disk can be used, .
