Underwater Detector High Power DC IP Measuring System for Finding Underground Water

Underwater detector High Power DC IP Measuring System for finding underground water


Main Applications and Features:

1. High Power Direct Current IP Measuring System includes: Receiver, time domain IP transmitter, rectification power, simulator and dummy load. The system is a high-tech product which integrated with geophysics, electronics, computer technology, information processing technology, aiming to hydro-geological, mineral geology, engineering geology, energy, geology, environmental geology applications.

2. For large areas of metal mining, non-metallic mineral resources, geological survey and detailed survey work, search for groundwater and other hydrological and engineering geological exploration.

3. The system transmitter has two synchronization mode (domestic initiation): Delay synchronization after pulse and high-precision quartz clock synchronization, which allows high efficiency of field production, also convenient and flexible.


System Composition:

One 5/10/15KW High Power Direct Current IP Transmitter
One 5/10/15KW High Power Rectifier Power Source
One or more DJS-8B Direct Current IP Receiver
Electrodes AB, Power Lines AB, Measuring Electrodes, and other related accessories

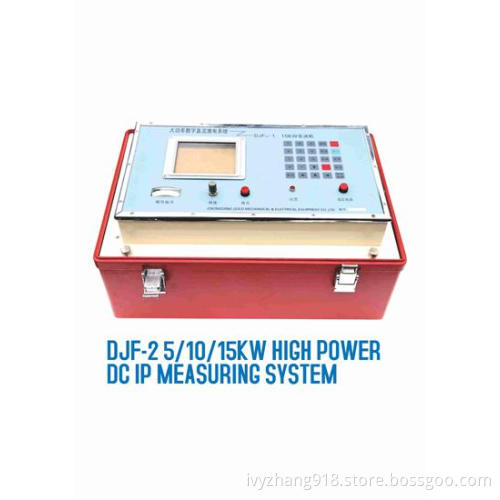

DJF-2 5/10/15kw Transmitter:

Auto time travel, with regular current storage function to facilitate future resistance calculation
Micro-computer controlled, large-screen LED to display output voltage and current, touch panel.
Provide with RS-232 serial interface to facilitate the transferring of current data
High voltage, high current, with over-voltage and over-current protection and circuit-opening attention



Technical Specifications:

Maximum Transmitting Power: 5 /10 /15KW
Maximum Power Supply Voltage: ± 1000 V
Maximum Power Supply Current: 5/10/15A
Power Supply Pulse Width: 1~60 sec.
Output Waveform: Bipolar waveform, Duty Cycle 1: 1
Current Storage Time Interval: Programmable, Step Length: 1 minute
Data Storage: Can store current data not less than 8, 000 groups (including data like year, month, date, hour, minute, etc. Of measurement time), with power-failure protection
Large Screen Display: 160 × 128 Lattice Graphic LCD
Working Temperature: -10° C~ +50° C, 95%Rh
Storage Temperature-20° C~ +60° C
Volume: 476× 309× 247 mm
Weight: 12 kg
