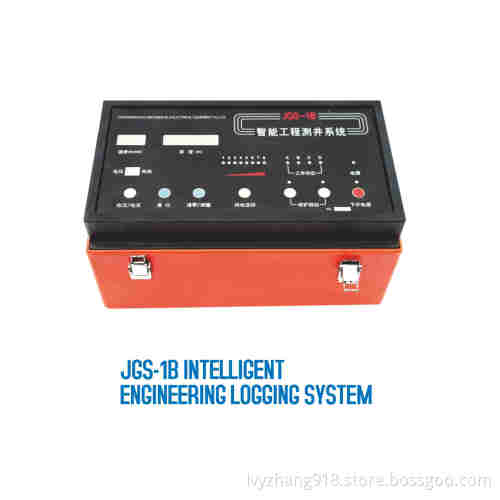

Well logging JGS-1B Intelligent Engineering Logging System

Used to measure various parameters of water well, oil well, coal well.

Main Applications and Features:

Coal Field Digital Integrated Logging
Hydrological Engineering Digital Integrated Logging
Solid Metal Ore Digital Integrated Logging
Other Minerals Digital Integrated Logging
External Laptop (Desktop PC)
For upward logging, also for downward logging
Receive digital signal, analog signal
8 taps of power supply current, Optional
Automatic sampling as per depth interval, sampling interval arbitrarily
Indoor simulation logging, repeatability observation of instruments and probes
Membrane panel, attractive and durable


Technical Specifications:
1 12bit A/D Conversion, Program-Controlled Magnification K=0.5~128
2 Counting Channel: F≤ 500KHz
3 Digital Signal Transmission Frequency: 9600bit/s
4 Power Supply Cycle: 400ms
5 Current: 2mA~500 mA Optional
6 Signal Input Range: ≤ ± 10V
7 Continuous Working Time: ≤ 24 hr
8 Power Consumption: <200W
9 Volume: 420× 260× 210mm,
10 Weight: <7Kg
11 Working Temperature Range: -10° C~ +50° C
12 Working Power Supply: AC220V± 10% 50Hz ± 5%
13 Logging Speed: 0~30 m/min Adjustable (as per sampling interval)
Logging Working Software System
1 12bit A/D Conversion, Program-Controlled Magnification
2? Operation Environment: Windows98/2000/XP
3 Sampling Interval: Arbitrary (1~1000cm)
Setting (1cm, 2cm, ...1000cm)
4 Maximum depth of one-time acquisition: 3000m (0.1m sampling interval)
5 Depth automatic alignment of multi-parameters
6 Superposition of multi-parameters up to 10
7 Curve movement, anomaly removal, smoothing, inverted order, , segmentation, calculation, etc.
8 Interpretation of profile input, automatic generation of rock stratum name, thickness and baseplate depth
9 Curve amplification and compression
10 5 types of curve depth ratio: 1: 50, 1: 100, 1: 200, 1: 500, 1: 1000
11 Continuous drawing production in color or black-and-white effects
12 Output graph maximum width: 415mm, length: 2310mm
