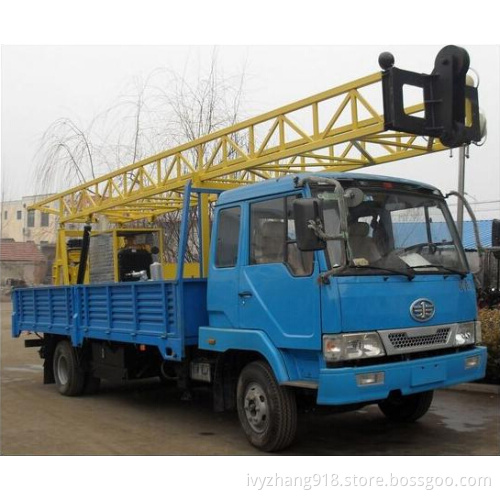

Truck Mounted Water Well Drilling Rig

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T, Western Union

Product Description

Specifications:

Water well drilling machines to drill wells for underground mining exploration.
Suitable for drilling medium mini-type grounting hole of building, skyscraper, dam, harbor and drilling water well.

Features:

Mast structure, top-drive head can move down or up along with, strength and rigidity.
Large torque, compact structure, easy to move.
Top-drive head is equipped with hydraulic chuck, drilling efficiently.
Reasonable arrangement, easy to operate, smooth and quick.
The machine is equipped with truck, easy to move with fast speed.
Hydraulic oil pressure feed device, improves drilling efficiency.
Diesel engine adopt the electric starter, to reduce the labor itensity.

Drilling depth	m	600
Open hole caliber	mm	300
End hole caliber	mm	75
drilling rod	mm	60
drilling angle		65-90
Spindle
Spindle forward speed	r/min	57-1024
Hug floodgate belt width	mm	90
Tightrope caliber	mm	12.5 or 14
Hoist single line lifting capacity	kg	3000
Reel caliber	mm	200
Reel cubic measure	mm	30
Mud Pump
horizontal double actuator
displacement	L/min	200,125
Triangle conveyer belt type		B*5
Work pressure	Mpa
Water inlet caliber	mm	65
Water to exit caliber	mm	37
Oil Pump
Duplex gear oil pump
Front displacement, pressure		32L/min 20Mpa
Behind displacement,pressure		14L/min 20Mpa
Drilling R ig Power
Diesel engine	Hp	395Kz 27HP
Electric motor	Kw	Y180L-4 22KW
