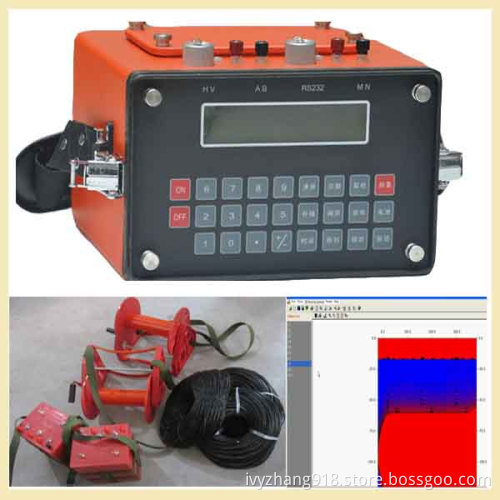

DDC-8 Resistivity Meter For Ground Water Detector is widely used in hydrology,

Environmental protection, engineering geophysic

Main Applications and Features

1 By utilizing the apparent resistivity parameters, it is widely used in hydrology, environmental protection, engineering geophysical exploration, metal and non-metal mineral resources exploration.

2 Microcomputer controlled, direct-reading resistivity, various electrode arranging mode, data protection against power-failure

3 This instrument applies to Electrical Prospecting such as Vertical Electrical Sounding, Electrical Profiling, Charging Method and Spontaneous Potential Method, etc. On ground and in trench.

Max. Power Supply Voltage:	700V
Max. Power Supply Current:	3A
Voltage Measuring Range:	±3000mV
Voltage Measuring Accuracy:	±1.5%±0.1mV
Current Measuring Range:	0.1mA~3000mA
Current Measuring Accuracy:	±1.5%±0.1mA
SP Compensation Range:	-1000mV~+1000mV
Instrument Input Impedance:	≥30MΩ
Operating Temperature:	-10°C~50°C
Machine Size:	244×154×237mm
