Gygd-300 Bore Hole Camera, Bore Well Camera, Borehole Inspection Camera, Water Well Inspection Camera, Underwater Video Camera

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T

Product Description

Main application:
Stratum structure divide
Well wall stratum crack
Karst development discrimination
Distinguish fractured development zone
Determine the karst distribution position
Long time underground borehole monitoring

Gygd-300 Bore Hole Camera, Bore Well Camera, Borehole Inspection Camera, Water Well Inspection Camera, Underwater Video Camera

Features:
Real time video, collect, record
Clearly image show on ground instrument
Vertical drilling hole, horizontal drilling hole, arbitrary drilling hole
Widely used in water well, oil field, coal field, engineering geology, dam, reservoir,
Oceaneering

Gygd-300 Bore Hole Camera, Bore Well Camera, Borehole Inspection Camera, Water Well Inspection Camera, Underwater Video Camera

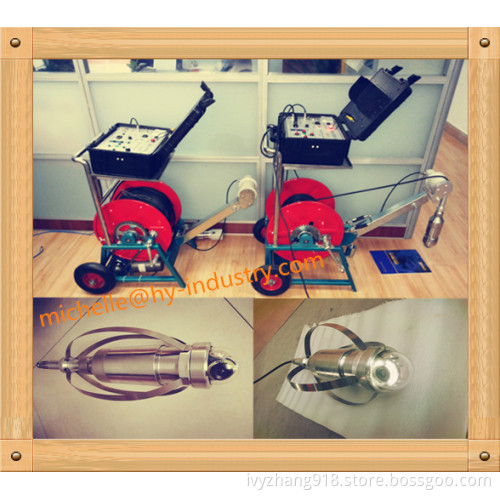

System component:
Ground displayer, camera probe, manual/electrical winch with cable, DVR, Wellhead pulley

No.	Product Configurations	Dimension	Specification
1	Probe	Dia.: 80mm Length: 470mm	(1) Front lens are imported resins, (2) Not easy damaged, (3) Pressure is 16-30Mpa (can be under 3000m deep water) (4) Light: 6-12LED Lights
2	Camera		(1) Japan SONY inductor 1/3'' CCD, (2) Image definition is HD 750 TVL (3 Watertight (4) Camera Angle: 180/360 degree
3	Professional logging cable	Length: 0-2500m(optional)	(1) With steel wire, (2) Tension is 150kg, (3) Destroy tension is 260kg
4	Main Control Host		(1) 220V/380V/12V optional. (2) LCD dispaly can be 8/15inches. (3) Aircraft grade aluminum alloay material
5	Downhole Pulley		Can change the booth size according to the well mouth size
6	Logging Winch		Hand/Electrical winch
7	Lithography System		(1) SONY disc-carving machine, (optional) (2) Discs and U disk can be used
