Deep Underwater Water Well Inspection Camera and Borehole Video Camera

1) Applications:

1. Well drilling, water well inspection,

2. Oil field,

3. Coal field,

4. Engineering geology,

5. Dam, reservoir, oceaneering

(1) Front lens are imported resins,

(2) Not easy damaged,

(3) Pressure is 16-30Mpa

(can be under 3000m deep water)

(4) Light: 6-12LED Lights

(6) Japan SONY inductor 1/3' ' CCD,

(7) Image definition is HD 750 TVL

(8 Watertight

(9) Camera Angle: 180/360 degree

No.	Product Configurations	Dimension	Specification
1	Probe	Dia.: 80mm Length: 470mm	(1) Front lens are imported resins, (2) Not easy damaged, (3) Pressure is 16-30Mpa (can be under 3000m deep water) (4) Light: 6-12 LED Lights
2	Camera		(1) Japan SONY inductor 1/3' ' CCD, (2) Image definition is HD 750 TVL (3 Watertight (4) Camera Angle: 180/360 degree
3	Professional logging cable	Length: 0-2500m(optional)	(1) With steel wire, (2) Tension is 150kg, (3) Destroy tension is 260kg

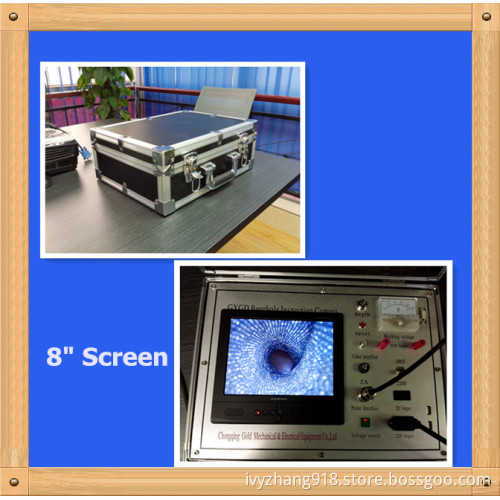

4	Main Control Host		(1) 220V/380V/12V optional. (2) LCD dispaly can be 8/15inches. (3) Aircraft grade aluminum alloay material
5	Downhole Pulley		Can change the booth size according to the well mouth size
6	Logging Winch		Hand/Electrical winch
