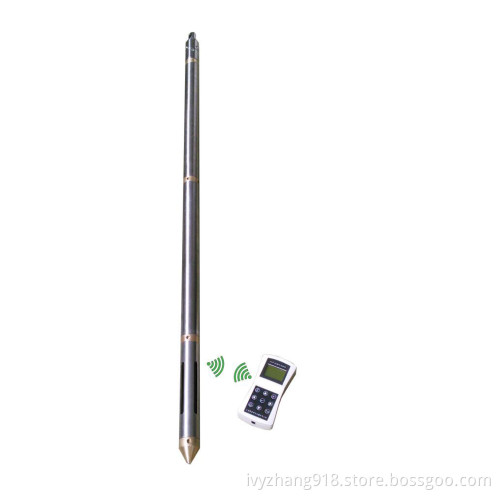

Wireless Inclinometer GDP-2D Multi-Function Wireless Inclinometer

Borehole Inclination Meter, Borehole Inclinometer, Digital Inclinometer, Borehole Inclination Tester, Wireless Inclinometer


Purpose:
The instrument is designed and made for inclination measurement and direction control during engineering drilling, exploration drilling and directional drilling. Combines sensor, power supply, data processing system, and other controlling unit together, it can independently determine dip angle and azimuth angle of borehole at multi-points. No cable is needed. No mechanical moving parts. It is reliable and with high performance price ratio. It has been widely used in engineering, hydrology, oil field, coal field, and geology.

Main characteristics
1. Measurement depth: ≤ 1500 m;
2. Measurement range and error:
(1) Dip angle: 0~50° ; ± 0.2° ;
(2) Azimuth angle: 0~360° ;
When dip angle is at 1~3° , its error is ± 5.0° ;
When dip angle is at 3~50° , its error is ± 3.0° ;
3. Measurement mode: At fixed points;
4. Delay time: 1~180 min;
5. Time interval between measurement points: 1~60 min;
6. Measurement points: 1~100;
7. Data storage: 100 groups (Total numbers of measurement points saved is 1000);
8. Power supply: Built in battery to provide power; It can run 32 hours after been charged;
9. Inclinometer probe: φ 40mm× 1320mm;
10. Ambient temperature: 0° C~55° C;
