360 Degree Rotary Borehole Inspection Camera Underwater Camera

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T

Product Description

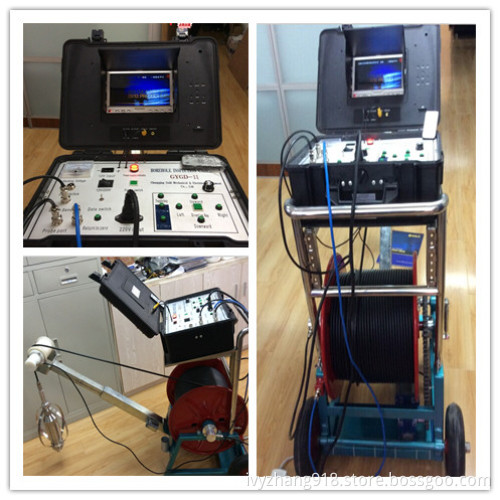

GYGD Borehole Inspection Camera

Main application:
Stratum structure divide
Well wall stratum crack
Karst development discrimination
Distinguish fractured development zone
Determine the karst distribution position
Long time underground borehole monitoring

Features:
Real time video, collect, record
Clearly image show on ground instrument
Vertical drilling hole, horizontal drilling hole, arbitrary drilling hole
Widely used in water well, oil field, coal field, engineering geology, dam, reservoir,
oceaneering

System component:
Ground displayer, camera probe, manual/electrical winch with cable, DVR, Wellhead pulley

No.	Product Configurations	Dimension	Specification
1	Camera Probe	Dia.: 50/80mm Length:470mm	(1) Front lens are imported resins, (2) Not easy damaged, (3) Pressure is 20Mpa (can be under 2000m deep water) (4) Light: 6-12 LED Lights
2	Camera		(1) Japan SONY inductor 1/3'' CCD, (2) Image definition is HD 850 TVL (3 Watertight (4) Camera Angle: 360 degree
3	Professional cable	Length: 0-2000m (optional)	(1) With steel wire, (2) Tension is 150kg, (3) Destroy tension is 260kg
4	Main Control Unit		(1) 220V/380V/12V optional. (2) Aircraft grade aluminum alloay case
5	Downhole Pulley		With counter
6	Logging Winch		Hand/Electrical winch
7	HD DVR		With Storage card
