Shallow Refraction Survey Seismograph Wave Speed Exploration Seismic Equipment

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing, China
Payment Type:	L/C, T/T, Western Union

Product Description

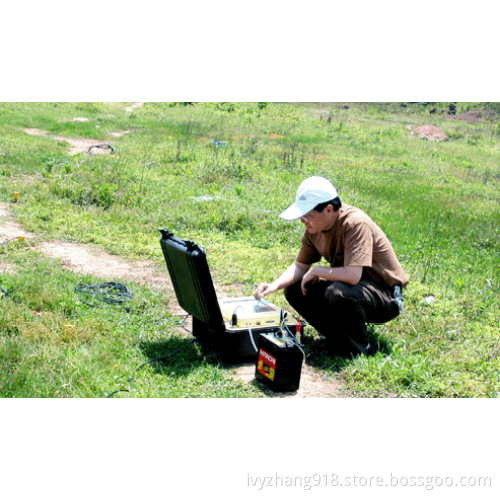

Based on WZG-24 engineering seismograph, WZG-24B Engineering Seismograph is developed as a 24bit instrument under English version WINDOWS operating system. With years of designing and manufacture experiences, and accepting latest electronic technologies and design ideas, WZG-24B features multi-function, high accuracy, high speed, reliable data and good expandability. In addition to WZG-24B main unit, an industrial computer or notebook is also must to collect data and to communicate with it through USB port, in association with an integrated rechargeable battery which can continuously last for eight hours.

Seismic source may be hammer, electric spark or explosion. It is extremely
suitable for wave velocity testing (sheared wave), surface wave detecting, pier foundation inspection, ground micro-tremor survey, seismic imaging, shake measurement, and reflection and refraction survey. It is extensively applicable in hydrogeology, electric power, railway, bridge, city construction, traffic and other engineering geological field prospecting as well as in exploration of petroleum, coalfield, uranium ore, groundwater and other resources.

Technical specification:

Channel number	24
Sample stations	1024, 2048, 4096, 8192, 16384
Sample frequency	a, Generally, 10μs, 25μs, 50μs, 100μs, 200μs, 500μs, 1ms, 2ms, 5ms, 10ms, 20ms b, For micro-tremor survey, 1ms ~ 200ms selectable
A/D converter	24 bit
Signal stack and amplification	32 bit
Dynamic range	140dB
Frequency bandwidth	0.1Hz ~ 4000Hz
Noises	1μV(full-frequency state)
Amplitude consistency	±0.2%
Phase consistency	±0.01ms
Time lapse	0~9999ms
Date format	SEG-2
Working temperature	0ºC~50ºC, 90%RH
Storage temperature	-20ºC ~ +60ºC
