Water Well Inspection Camera 200-2000 Meter Inspection Camera Geological Inspection Camera

Get Latest Price

Payment Type:: L/C, T/T, D/P, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T, D/P, Paypal, Western Union

Product Description

Water well inspection camera geological inspection camera

Main Applications and Features

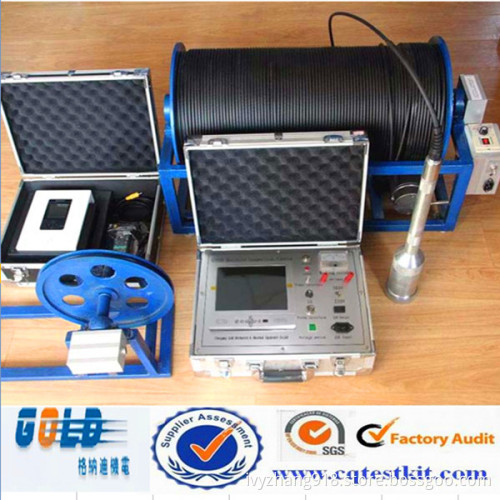

JKX-2 Drilling Full Hole Wall Imaging System adopts reflective axicon lens to take 360° Hole wall images, image acquisition and processing by means of computer to form a continuous hole wall developed image. The hole wall image are developed following the order NESWN. The longitude connection of images are jointed as per the order of depth, thus the overall hole-wall image is fully understand at a glance.
Data Processing Function
· Browsing, real-time display of position and depth
· Marking of images and literal texts
· Making of interpretation lines on images
· For convolution rotation, see coregraph
· Calculate the inclination of stratum construction
· Measure the thickness of rock stratum and the width of cracks
Technical Specifications
1Vp-p PAL TV Signal 75Ω Video Output
1Vp-p PAL TV Signal 75Ω Video Output
Definition: 450TVL
Viewing Angle: 360° Hole Wall
Lighting: Built-in K3200° Trichromatic Lighting Ring
Probe Diameter: φ 70mm
Adaptation Aperture: φ 75~φ 300mm
Power Supply: AC220V± 10% 50Hz
Software Operating Environment: Win2000/XP
Adapted Hole Depth: 0~300mm Clear Water Hole or Dry Hole
