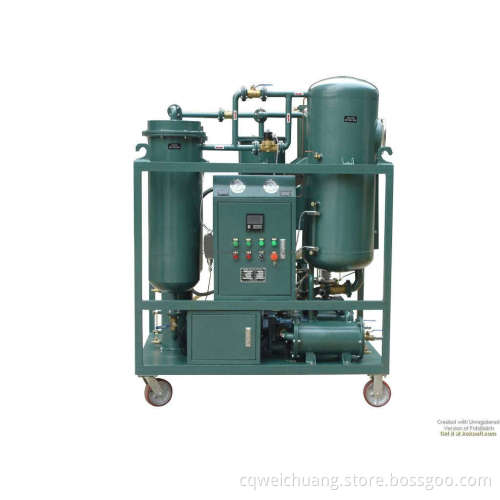

Turbine Oil Recycling / Filteration

Feature
1. Taking the advanced nano-molecule purifying technology.
2. Breaking emulsification thoroughly with high-molecule material.
3. Dewatering very effectively with once and for two steps dehydrating methods. It can thoroughly dear away the liquid water, 100% free water and 80% dissolved water.
4. With distinctive removing impurities techniques filtering through double FH trapezoidal network and absorbing by high polymer material, this machine can make the β 3equal or surpass 200 and make the cleanness lower grade 6(NAS1638).
5. With the trapezoidal, spiral, automatic back flushing system.
6. With the advanced dielectric condensation devices.
Advantage
This machine breaks emulsification thoroughly, and the oil is very difficult to emulsify again after treatment. Its dehydration volume is large and it can absorb water on line
Turbine oil purifier Features:
1. Working Vacuum: 0.07~-0.101(-Mpa)
2. Limite Vacuum_0.095(-Mpa)
3. Working Pressure: ≤ 0.35Mpa
4. Temperature Pange: 45~65
5. Power Supply: 50Hz 380V 3-Phase 4-Wire
6. Working Noise: ≤ 80dB(A)
Oil treatment Index:
1. Water Content≤ 50PPm
2. Kinematic Viscosity≤ 20% in comparison to the original bias value of new oil
3. Demulsibility≤ 15min
4. Filtering Accuracy≤ 5μm
5. CleannessNAS1638≤ Grade 7, SAE standard grade 4.
