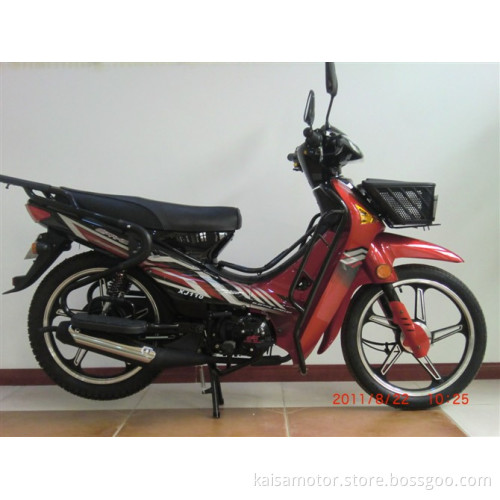

Cub

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing, China
Payment Type:	L/C, T/T

Product Description

Engine: 110CC
Max. Power/Rotation (km/r/min): 5.2/8800
Max. Torque/Rotation (N. M/r/min): 10.0/7500
× Bore× Stroke (mm): 52.4× 49.5
Max. Speed (km/h): 85
Idle speed (r/min): 1500
Displacement (ml): 107
Min. Fuel consumption (g/km. H): 367g/kw. H
Compression Ration: 9.7: 1
Wheel base (mm): 1240
Min. Ground clearance & Ground clearance (mm): 150
Ignition: CDI
Gearshift: 4gears
Starting type: Electrical/kick
Lubrication: Pression
Cooling: Air cooled
Brake (F/R): Front disc rear drum
Transmission: Chain drive
Fuel tank capacity: 3.5ml
Front/ Rear Tire: 2.50-17/2.75-17
Climbability (° ) & Max. Climb ability (° ): 18
Battery: 12V4Ah()
Max. Loading (kg) & Loading capacity (kg): 90
Gross weight (kg): 124
Net weight (kg): 104
Seat height (mm): 760
Length Width Height (mm): 1940× 690× 1140
