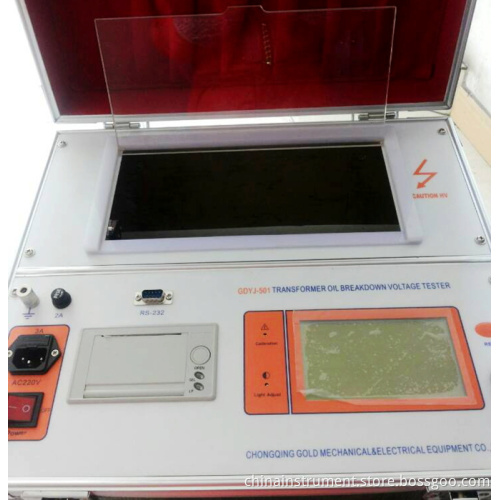

Gdyj-501 Insulating Oil Breakdown Voltage Tester /Withstand Voltage Tester

I---Functions
1 Breakdown test of user-defined
2 Proof test
3 Calibration interface for customers
4 Uploading data to PC and making word report automatically.
5 Result print

II---Technique index
1 Output voltage: AC 0~80KV/AC 0~100KV
2 Rate of voltage rise: 2KV/s±10%
3 Measuring precision: 3%RDG+0.3%FS
4 Test times setting: 1-9
5 Mixing time setting: 0~99 second
6 Waiting time setting: 0-9 minute 59second
7 Maximum storage capacity: 100 groups of test data
8 Test standards: IEC60156
9 Display: 256´128 LCD
10 Rated power supply: AC 220V±10% 50Hz/60Hz
11 Environment temperatures: 0-50C
12 Relative humidity ≤80%RH
13 Size: 420mm×380mm×410mm
14 Weight: 28kg

III---Test Report
