Gdsf-II Sf6 Gas Analyzer Price

I---General Information

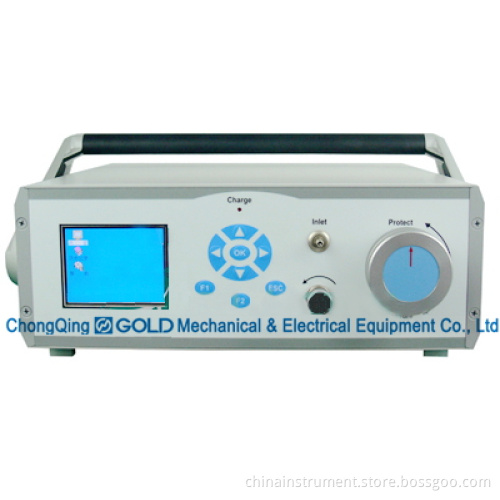

GDSF-II SF6 Gas Analyzers can test SF6 humidity, SF6 decomposition products, SF6 purity, which can finish two items detection in one on-site measurement, saving gas in the equipment.
II---Features
1. Color LCD display, real-time show kinds of parameters;
2. Large information storage;
3. Built-in rechargeable battery, AC/DC power available;
4. Automatic zero calibration;
5. Electronic flow display;
6. Measurement data print;
7. Measurement data storage;
8. Intelligently display electricity quantity;
9. User-defined reports;
10. Support data communication;
11. Support file system;
12. Self-diagnostic function;
13. Graphical Menu.
III---Technical parameters
SF6 Humidity:
1. Measuring range: Dew point -100 ~ +30 º C(support ppmv, etc. ).
2. Dew point accuracy: +-0.5degree (when the dew point temperature is below 0 degree, the sensor output for the frost point).
3. Repeatability: +-0.5 degree.
4. Gas flow: SF6 adjustment in 0.5 ~ 0.9L/min;
SF6 Purity:
1. Measuring range: 0 ~ 100% SF6;
2. Accuracy and repeatability: +-0.5%, nothing to do with the flow;
1. H2S: 1 ~ 200ppm (standard);
2. SO2: 1 ~ 100ppm (standard);
3. HF: 0 ~ 10ppm (optional);
4. Accuracy: +-1ppm;
Note: You can also choose
1. GDPF-II SF6 Gas Analyzer (purity, decomposition)
2. GDDF-II SF6 Gas Analyzer (humidity, decomposition)
3. GDDP-II SF6 Gas Analyzer (humidity, purity)
