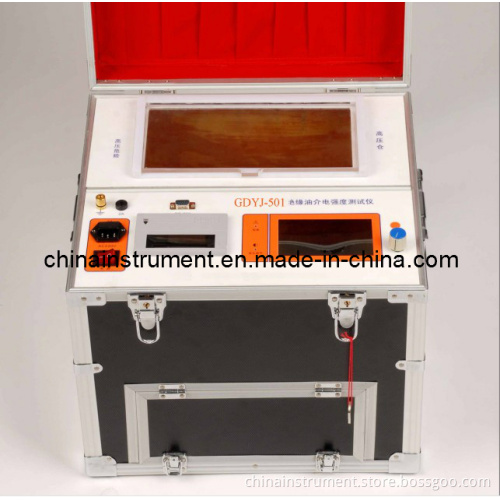

Gdyj-501 Transformer Oil Dielectric Test Equipment

GDYJ-501 Transformer Oil Dielectric Test Equipment
Reference Standard:
1. GB-86 Insulating Oil Dielectric Strength Testing Method
Characteristics:
1. Lcd display the test procedure and test result.
2. All the human interaction operations is completed through the rotating mouse.
3. Easy for customers to measure the breakdown voltage of all kinds of oil.
4. Built-in micro printer which can print the test result.
5. Rs232 allowed pc connecting work.
6. Good performance at stability an anti-noise.
Functions:
1. Breakdown test of user-defined
2. Proof test
3. Calibration interface for customers
4. Unloading data to PC and making word report automatically.
5. Result print
Technical Parameter:
NoNameParameterRemark
1Rated Power SupplyAC 220V± 10% 50/60Hz
2Output VoltageAC 0~80KV/AC 0~100KV
3Rate of Voltage Rise2KV/s± 10%
4Measuring PrecisionGrade 3
5Times1~9 times
6Mixing Time0~99 seconds
7Placing Time0~9mins and 59 senconds
8Data Storage100 groups
9Voltage Limit Setting for proof test20KV~70KV
10Hold time for proof test1~10mins
11Working Temperature5~40° C
12Relative Humidity≤ 80% RH
13Dimension420× 380× 410mm
14Weight28 kg
