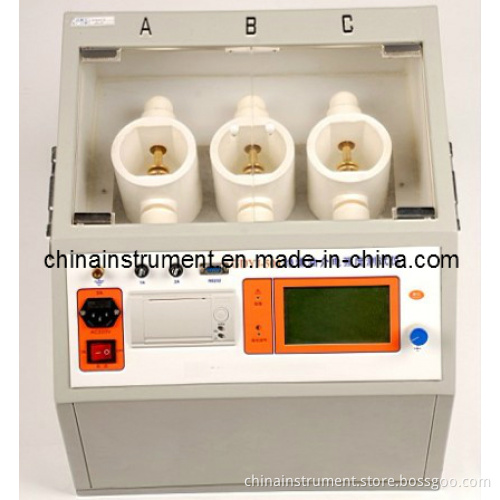

Gdyj-503 Three Vessels Insulating Oil Breakdown Voltage Tester

GDYJ-503 Three Vessels Insulating Oil Breakdown Voltage Tester

I Brief Introduction
GDYJ-503 Three Vessels Insulating Oil Breakdown Voltage Tester is developed according to the national standard GB-86 Insulating Oil Dielectric Strength Testing Method. The tester can test three cups of oil at the same time. LCD screen can display test procedure and test result. All the human interaction operations complete by the rotating mouse. It is very easy for customers to measure the breakdown voltage of all kinds of oil by HYYJ-503. You can print the test result by the micro printer internal the tester. Of course, you can upload the test data to PC from RS232 for data analyzing. The special circuit design makes the tester has a good performance at stability and anti-noise.

II Technique index
ModelGDYJ-503 Insulating Oil Breakdown Voltage Laboratory Equipment
Input voltageAC 220V± 10%
Output voltageAC 0~80KV
Rate of voltage rise2KV/s± 10%
Measuring precision3 class
Times1-6
Mixing time0~99 second
Placing time0-9 minute 59second
Voltage limit setting for proof test20KV----70KV
Hold time for proof test0minute -----10 minutes
Environment temperature5-40° C
Relative humidity≤ 80%RH
Size420× 380× 410mm3
Weight28kg
Make a choice and combination at random between A, B and C cup
III Characteistics
1 Breakdown test of user-defined
2 Proof test
3 Calibration interface for customers
4 Unloading data to PC and making word report automatically.
5 Result print
