Gdyj-502 Insulating Oil Tester for Dielectric Strength Test

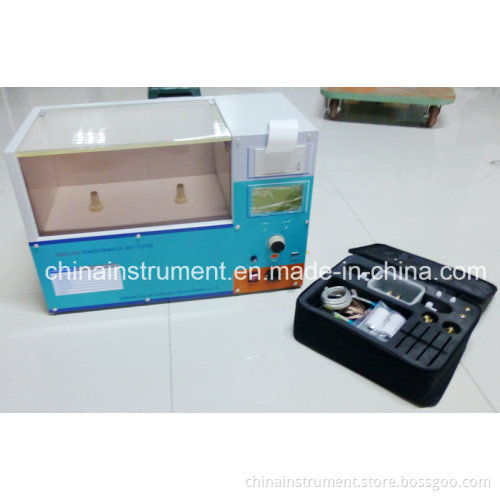

GDYJ-502 Insulating Oil Tester for Dielectric Strength Test
Introduction:
GDYJ-502 Insulating Oil Tester for Dielectric Strength Test for dielectic strength test is a professional instrument for breakdown voltage test of insulating oil.
Test Standards:
1. IEC60156
2. IS6792
3. BS5874
4. ASTM D1816
5. ASTM D877
Characteristics:
1. Automatic determination.
2. Easy operation.
3. Stable performance and long life use.
4. Breakdown test of user-defined.
5. Proof test.
6. Fast test(5 minutes standard test).
7. Calibration interface.
8. PC connecting work and making word report.
9. Lcd display.
10. Built-in printer
Technical Parameters.
1 Output VoltageAC 0V~100KV
2 Voltage Rising Rate0.5/2/3/5Kv/s± 5%
3 Test Times Setting9 times
4 Stirring Time Setting0~999s
5 Waiting Time Setting0~999s
6 Test Error3%RDG+0.3%FS
7 Storage Capacity100 group
8 Power SupplyAC220V± 10% 50Hz/60Hz
9 Environment Temperature0~50° C
10 Relative Humidity≤ 85%RH
11 Dimension620× 430× 330mm
12 Weight41kg
