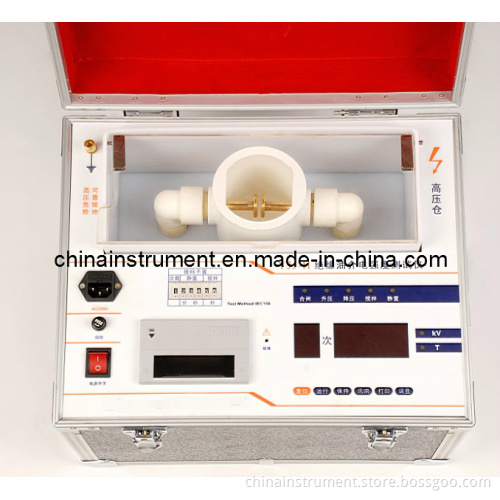

Yjj Insulating Oil Dielectric Strength Tester

YJJ Insulating Oil Dielectric Strength Tester
1. The summary
YJJ series computer is a test device for testing the dielectric strength of insulating oil, which is
Produced according to the National standard GB-86 (Determination Method For Dielectric
Strength of Transformer Oil). The values are preset with the adjusting switch and then the
Device strictly works on the basis of the preset values. After doing one test, the results can be
Printed automatically.
2. Technical Data
A. Input voltage: AC220V
B. Output voltage: AC0-80kv
C. Voltage rising rate: 2kv/s± 10%
D. Test precision: 1.0 grade
E. Test times: 1---9, stirring time; 0---99seconds, stewing time: 0---9 minutes 59seconds
F. Temperature: 5----40° C, relative humidity: 90% RH
G. Dimension: 520mm*400mm*400mm; Net weight: 45kg.
Payment & Shipping Terms
Supply Capacity
Payment term:
T/T or L/C
Production capacity:
500pcs/month
MOQ:
1 pc
Packing:
Wooden case
Price
Negotiable
Delivery way
By Air
Means of transport:
FOB, CIF, CFR
Delivery time:
10 days
