Gdbc-901 Three Phase/Single Phase TTR Transformer Turns Ratio Meter

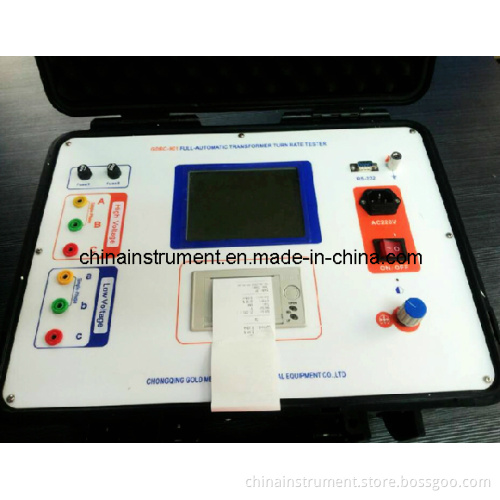

GDBC-901 Three Phase/Single Phase TTR Transformer Turns Ratio Meter

I. Introduction
1. GDBC-901 Three Phase/Single Phase TTR Transformer Turns Ratio Meter is designed according IEC76-1, IEC60044 and GB/T1094.
2. GDBC-901 Three Phase/Single Phase TTR Transformer Turns Ratio Meter could be applied to test the ratio of single or three phase transformer. Also the connection group of three phase transformer could be calculated with the ratio. All parameters are measured in one test for three phase transformer.

II. Functions
1. The voltage ratio measurement for three or singe phase transformer
2. The group vector measurement for three phase transformer.
3. The polarity measurement for single phase transformer or CT/PT
4. Voltage ratio error calculation
5. Current transformer ratio measurement
6. Excitation current measurement in ratio testing
7. Reproduction the AC test voltage from power source to reduce the effects of bad power source
8. Save the test results in the memory internal the tester
9. Print the test results by micro printer
10. Reverse connection detect unit to prevent the high voltage injected to operator
11. Over current protection unit integrated in software and hardware
12. Upload the test results to PC by RS232 and make word report by software

III. Technique Index
