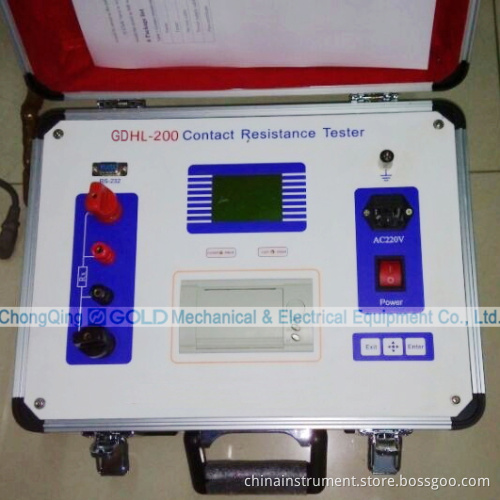

Gdhl-III High Precision Automatic Cr Contact Resistance Meter

GDHL-III High Precision Automatic CR Contact Resistance Meter

I. Contact Resistance Meter Application:
GDHL Series Contact Resistance Tester is applied in circuit breaker testing and power cable connection quality inspection. The max test current of contact resistance tester could be reached 600A. All the test results could be saved in tester or printed by micro printer.

II. Contact Resistance Meter Technique Index:
1. Test current: 100A/200A/400A/600A DC
2. Max voltage output: 5V
3. Test standard: IEC62271
4. Measurement range: 0~1999.9uohm Resolution: 0.1uohm
5. Accuracy: 0.5%RDG+0.2uohm
6. Display mode: LCD
7. Max memory size: 100 groups of test data
8. Power output mode: Succession
9. Rated power supply: AC220V ± 10%, 50Hz/60Hz
10. Environment temperature: 0~50° C
11. Humidity: ≤ 85%RH
12. Size: 340 × 280 × 210mm3
13. Weight: 7 kg
