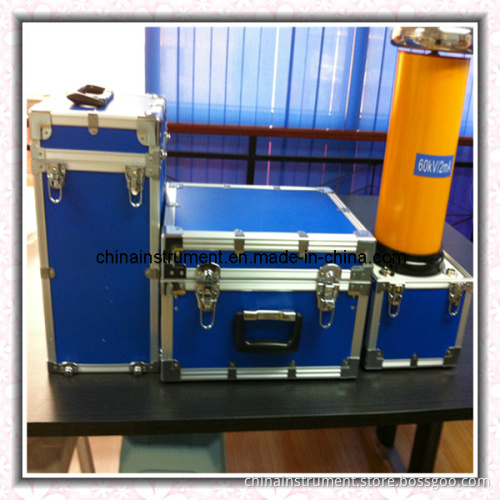

Zgf DC High Voltage Producer/High Voltage Power Supply

ZGF DC High Voltage Producer/High Voltage Power Supply


I. Introduction
ZGF DC High Voltage Producer is DC high voltage power supply equipment which is applied in power cable test and arrester test in power system.

II. Features
1, Adopting high frequency doubler circuit, application PWM pulse width modulation technology and high-power IGBT devices.
2, The large feedback voltage, output voltage, high stability, small ripple factor ≤ 1%.
3, Smooth full scale voltage regulator, voltage regulator fineness regulation accuracy ≤ 0.5%, stability of ≤ 1%,
Voltage and current error is 1% (of reading ± 0.2KV), current error ± 1 digit.
4, Boost Boost from zero potentiometer.
5, 75% UDC1mA function buttons for easy zinc oxide arrester test accuracy of 1% of reading ± 1%.
6, Overvoltage set using DIP glance, error ± 1%.
7. Multivoltage using new materials, light and strong. Exterior painted special insulation materials, electrical properties, moisture ability.

III. Specification
