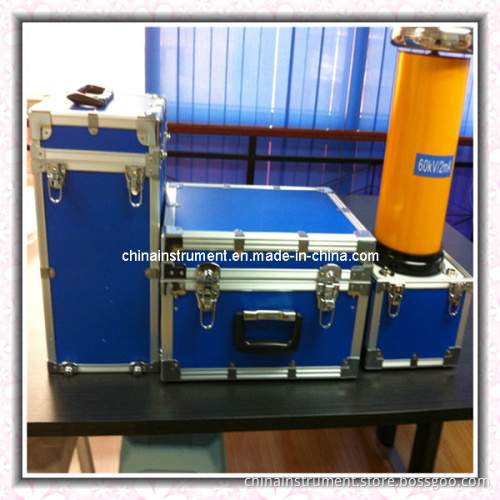

Zgf Digital Hvdc DC High Voltage Generator

ZGF Digital HVDC DC High Voltage Generator

I. Application:
ZGF DC high voltage generator is DC high voltage power supply equipment which is applied in power cable test and arrester test in power system. It has features of over-voltage and over-current protection, small size, easy operation and stability.

II. Function:
DC high voltage test for the power supply department, for example: DC HV withstand and leakage current test in power cables, the conductance current and 1mA reference voltage of magnetic blow out arrester and zinc oxide arrester test. Using as power supply of laser, also electrostatic painting and twine and so on.
Other place required DC high voltage.

III. Features:
1). Small ripple factor, stable and reliable voltage output, no noise.
2). With over-voltage, over-current, zero position protection functions, can set value of protection voltage
3). Digital display, can read the data when power on, convenient to supervise output status.
4). With 0.75 times voltage conversion, convenient to test Zinc Oxide arrester.
5). Compact structure, small volume, easy to carry.

IV. Technique Index
