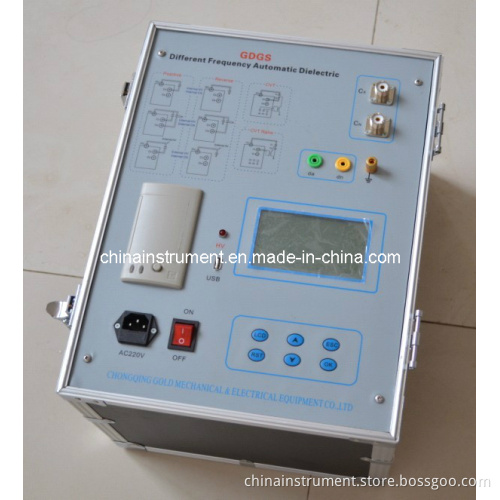

Gdgs Anti-Interference Tangent Delta Dielectric Loss Test Set

GDGS Anti-interference Tangent Delta Dielectric Loss Test Set

I. Application
GDGS Full-Automatic Tangent Delta Test Set is applied to measure the dielectric loss and capacitor value of insulation materials in high voltage power equipment. The non-power frequency voltage source is integrated in the tester to avoid power frequency interference. That make the tester has a good performance in measurement precision.

II. Technique Index
1. Measurement error:
Capacitor value: 1%RDG+5pf
Tangent delta: 1%RDG+0.04%
2. Output voltage: AC 0.5KV~10KV
3. Testing voltage setting resolution: 0.5KV
4. Maximum output capacity: 200mA
5. Testing frequency: 45Hz/55Hz
6. Test mode: Fully automatic
7. Power supply: AC220V± 50Hz/60Hz%10%
8. Environment temperature: 0-50° C
9. Humidity: ≤ 85%RH
10. Weight: 40KG

III. Two Models of GDGS Full-Automatic Tangent Delta Test Set
