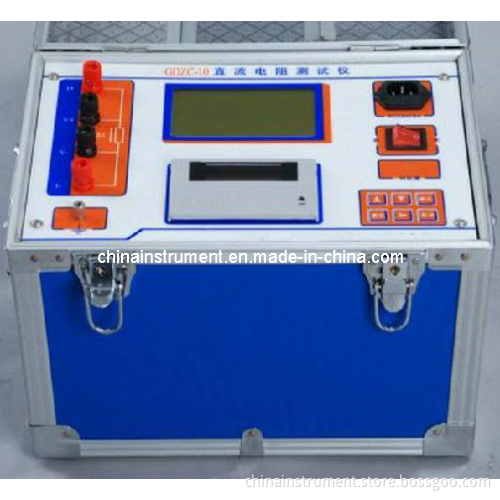

Gdzc Series Transformers DC Winding Resistance Tester

GDZC Series Transformers DC Winding Resistance Tester


I. Introduction
1. GDZC Series Transformer DC Resistance Tester uses Constant current source to measure the DC resistance of inductance circuit such as power transformer coil, current transformer coil and so on.
2. GDZC Series Transformer DC Resistance Tester has functions of self test, data processing, discharge rapidly, result print and so on.

II. Functions
1. A new switching power supply technology makes output current more stable and power larger than before.
2. GDZC Series Transformers DC Winding Resistance Tester has an advanced signal process circuit which has a good performance at anti-noise. Test data is precise and stable.
3. GDZC Series Transformers DC Winding Resistance Tester has protections to prevent circuit over-current, circuit over-voltage, wrong operation, discharge and so on.
4. Small size, light weight and more suitable for outdoor using.
5. Varies levels of output current make measuring range more wide.
6. Large-screen LCD makes operation easy.

III. Specifications
1 Test current
GDZC-2 max test current 2A
GDZC-10 max test current 10A
GDZC-20 max test current 20A
GDZC-40 max test current 40A
GDZC-100 max test current 100A
GDZC-20S max test current 20A Three channels measurement at the same time
2 Maximum measurement error: 0.2%RDG+2D
3 LCD display
4 Maximum voltage out for all series: 20V
5 Resolution: 1μ Ω (for all series)
6 Measuring range:
1μ Ω ~4.5kohm( GDZC-2)
1μ Ω ~20ohm( GDZC-10)
1μ Ω ~10ohm( GDZC-20)
1μ Ω ~10ohm( GDZC-40)
7 Rated power supply: AC220V± 10% 50Hz/60Hz
8 Temperature: -10C~+40C RH≤ 85%
