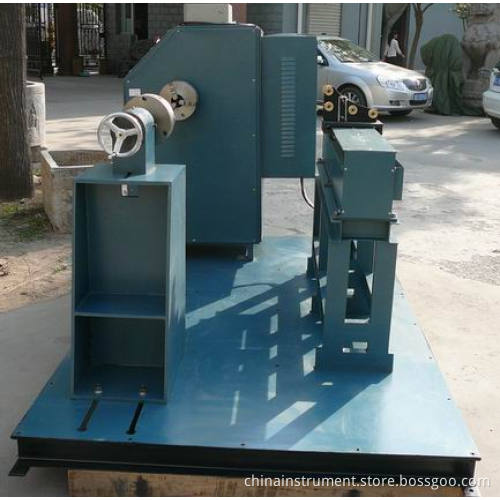

Automatic Transformer Winding Machine

1. Power Supply: 380V 50Hz, 15-30A
2. Winding head: 1
3. Wire diameter range: 0.01-50square millimeter
4. Wire wrapping accuracy: 0.1 turn (within 10, 000.00 turns), 1 turn (within 100, 000.00 turns)
5. Bobbin speed range: 0-50RPM
6. Frequency control
7. Rotatable coil width: 0-650mm
8. Rotatable coil diameter: 0-1500MM
9. Rotatable motor power: ≤ 630KW
10. With faceplate. Faceplate's diameter: 300MM
11. Single-reduction belt pulley
12. Double reduction speed-changing gear box
13. With pay-off rack
14. Braking function
15. Reversible counting
16. Machine overall dimension: 2500*680*950mm
17. Machine total weight: 1000KG
18. Machine total power: 10KW
19. With the function of automatic winding
