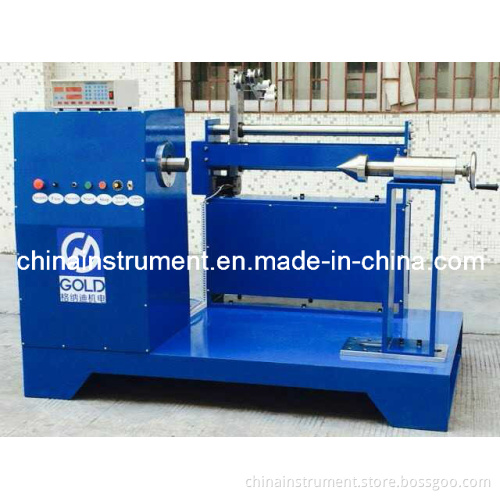

Gd-050c Electric Motor Coil Winding Machine

Automatic Wire Winding Machine for Transformer

This equipment adopts computer CNC control operation. It is driven by column decelerating machines and equipped with precise wire arrangement of stepping motor.
The equipment is specially used for the production of large-scale power transformers.
Main Features:
The machine has the characteristics of the novel contour, the reasonable structure, the heavy machine body and the excellent stability. And it is manufactured by quality steel products.
The CNC digital inverter control system is applied in this machine, and the machines have the characteristics of easy operation, rare maintenance and little malfunctions.
The variable frequency drive type is applied. The winding displacement is aided with precise servo driven type in low noise, leading to a fast and precise follow. The accessories are from the worldwide brands with high performance, long service period and adaptable working environment.
The extraction and storage can reach 1000 steps, and cylinder number, width, wire diameter, direction, speed, and some other parameters can be set. Besides, precise count, backup data for power fail, overload and over-current protection, strong anti-interference are possessed.
