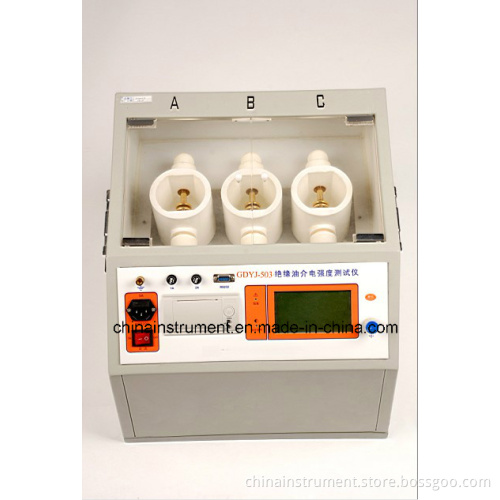

Gdyj-503 3 Oil Cups Insulating Oil Breakdown Voltage Bdv Tester

GDYJ-503 3 Oil Cups Insulating Oil Breakdown Voltage BDV Tester

I. General Introduction
1) GDYJ-503 Breakdown Voltage Tester(BDV Tester) is developed according to the national standard GB-86 Insulating Oil Dielectric Strength Testing Method. The tester can test three cups of oil at the same time. LCD screen can display test procedure and test result. All the human interaction operations complete by the rotating mouse.
2) It is very easy for customers to measure the breakdown voltage of all kinds of oil by GDYJ-503 Breakdown Voltage Tester(BDV Tester). You can print the test result by the micro printer internal the tester.
Of course, you can upload the test data to PC from RS232 for data analyzing. The special circuit design makes the tester has a good performance at stability and anti-noise.

II. Functions
1) Breakdown test of user-defined
2) Proof test
3) Calibration interface for customers
4) Unloading data to PC and making word report automatically.
5) Result print

III. Technique Index
