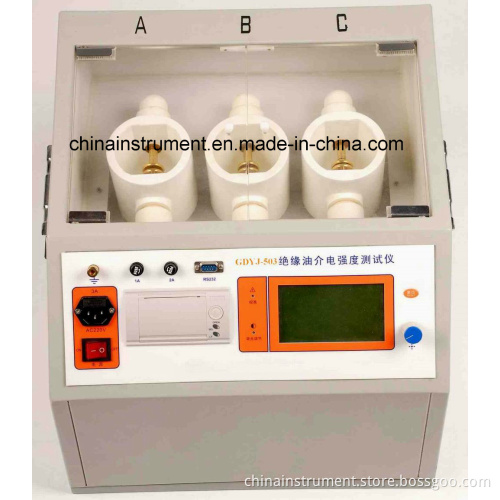

Gdyj-503 Three Vessels Insulating Oil Dielectric Strength Tester

GDYJ-503 Three Vessels Insulating Oil Dielectric Strength Tester

I. General Introduction
1) GDYJ-503 Insulating Oil Dielectric Strength Tester is developed according to the national standard GB-86 Insulating Oil Dielectric Strength Testing Method. The tester can test three cups of oil at the same time. LCD screen can display test procedure and test result. All the human interaction operations complete by the rotating mouse.
2) It is very easy for customers to measure the breakdown voltage of all kinds of oil by GDYJ-503 Insulating Oil Dielectric Strength Tester. You can print the test result by the micro printer internal the tester.
Of course, you can upload the test data to PC from RS232 for data analyzing. The special circuit design makes the tester has a good performance at stability and anti-noise.

II. Functions
1) Breakdown test of user-defined
2) Proof test
3) Calibration interface for customers
4) Unloading data to PC and making word report automatically.
5) Result print

III. Other Related Products
1) GDYJ-501 Transformer Oil Breakdown Voltage Tester
2) GDYJ-502 Transformer Oil Breakdown Voltage Tester
3) YJJ-II Insulating Oil Dielectric Strength Tester
4) GDYJ-502A Transformer Oil Dielectric Breakdown VoltageTest Set
IV. Technique Index
