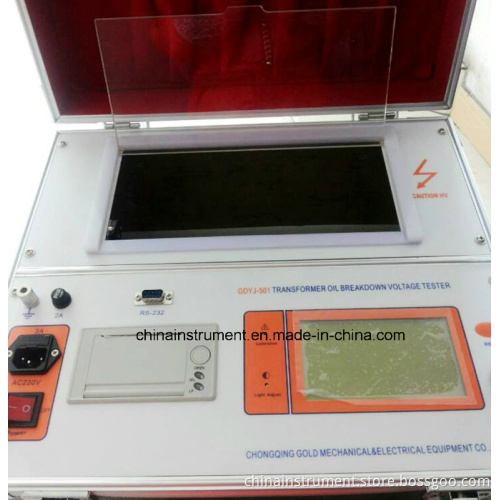

Gdyj-501 Transformer Oil Test Set AC 80kv/100kv

GDYJ-501 Transformer Oil Test Set AC 80KV/100KV

1.1 Introduction:
* GDYJ-501 Transformer Oil Test Set is developed according to the national standard GB-86 Insulating Oil Dielectric Strength Testing Method. LCD screen can display test procedure and test result. All the human interaction operations complete by the rotating mouse.
* It is very easy for customers to measure the breakdown voltage of all kinds of oil by GDYJ-501 Transformer Oil Test Set. You can print the test result by the micro printer internal the tester. Of course, you can upload the test data to PC from RS232 for data analyzing. The special circuit design makes the tester has a good performance at stability and anti-noise.

1.2 Functions
1) Breakdown test of user-defined
2) Proof test
3) Calibration interface for customers
4) Uploading data to PC and making word report automatically.
5) Result print

1.3 More Dielectric Breakdown Voltage and Dielectric Strength Test Sets
* GDYJ-501 Transformer Oil Dielectric Strength Test Set
* GDYJ-502 Insulating Oil Breakdown Voltage Test Set
* GDYJ-503 Three Vessels Insulating Oil Dielectric Strength Test Set
* YJJ-II Transformer Oil Dielectric Strength/Breakdown Voltage Test Set
* GDYJ-502A Transformer Oil Breakdown Voltage Test Set

1.4 Technique Index
