Automatic Transformer Coil Winding Machine

Introduction

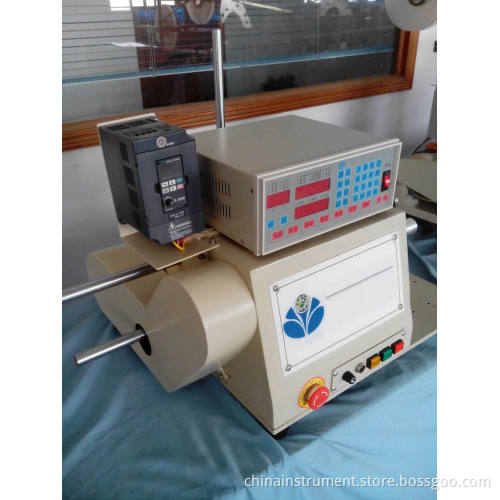

LX-050C Big-torsion Wire Power Transformer Coil Winding Machine
This equipmnet adopts computer CNC control operation. It's driven by column decelerating machines and equipped with precise wire arrangement of stepping motor. The equipment is specially used for the production of large-scale power transformers.
Characteristic:
1. The data storage segment bits 0~999 procedures
2. It can be positively and negatively winded with a high speed
3. The number of turns is accurate. There is function of power-off protection
4. When some problems occur, the data can be automatically saved
5. CNC can monior and display the production status
6. The setting is simple and the operation is convenient
7. Big torsion, low-speed winding
Technical specifications
1. Power supply: 3*380VAC
2. Power: 3HP
3. Speed of main axis: 0~150RPM
4. Wire diameter: Round wire Φ 6.0mm~Φ 9mm
Flat wire: Width 0~15m; Thickness 0~6mm
The above size flat wire is a hand row type
5. Winding width: Φ 1300mm
6. Wire arrangement width: 800mm
7. Equipment size: L/2000*W/1000*H/1300mm
8. Weight: 650KG
