Gdzc Transformer DC Resistance Tester

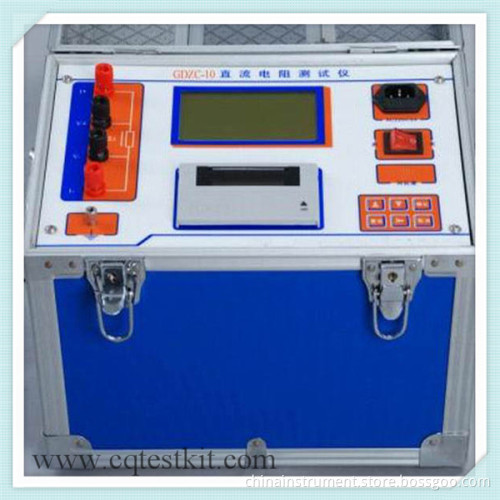

GDZC Transformer DC Resistance Tester
Application:
V GDZC Series winding resistance tester are applied to measure the DC resistance of inductance circuit such as power transformer coil, current transformer coil and so on. Also the tester could be applied to measure the cable resistance in 4-wire mode.
Functions:
V Winding resistance measurement
V Discharge the energy automatically when test is ended
V Print the test results by micro printer
Main technique index:
V Test current:
A. GDZC-2 max test current 2A
B. GDZC-10 max test current 10A
C. GDZC-20 max test current 20A
D. GDZC-40 max test current 40A
E. GDZC-100 max test current 100A
F. GDZC-20S max test current 20A Three channels measurement at the same time
V Maximum measurement error: 0.2%RDG+2D
V LCD display
V Maximum voltage out for all series: 20V
V Resolution: 1μ Ω (for all series)
V Measuring range:
A. 1μ Ω ~5kohm(GDZC-2)
B. 1μ Ω ~20ohm( GDZC-10)
C. 1μ Ω ~10ohm(GDZC-20)
D. 1μ Ω ~10ohm( GDZC-40)
V Rated power supply: AC220V+-10%, 50Hz/60Hz
Temperature: -10° C~+40° C RH<85%
