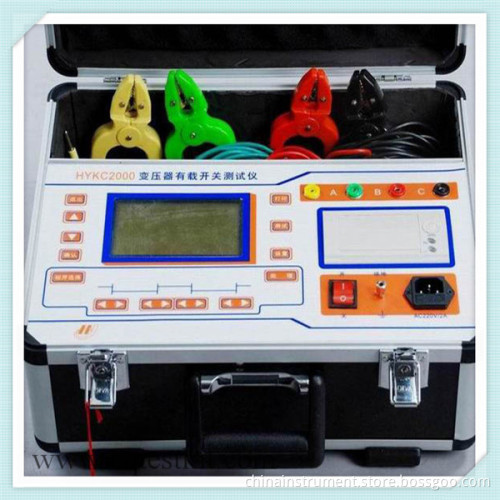

Transformer Load Voltage Adjustment Switch Tester, Oltc Tester

General Summary:
V The tester can record switch operation waveform in overall process.
V The longest time is 4s.
V It can test various parameters such as transition waveform, transition time, transition resistance and three phase synchronization one time and analyze results automatically.
V It has power-off protection, over-voltage protection, perpetual clock and high-speed printing.
Technique index:
V Three way independent test power, the maximum output current is 0.5A.
V Processing part: 80C320 high speed 8 digit microprocessor High speed A/D converter, the Maximum sampling rate can reach 400KHz
V Tester set sampling rate: 10~20KHz
V Maximum save time of single waveform: 4s
V Transition resistance measuring scope: 0~40Ω
V Measuring precision: <=10%
V Power supply: 220V± 10% power: 200W
V Size: 410*320*260mm3
V Weight: 20kg
