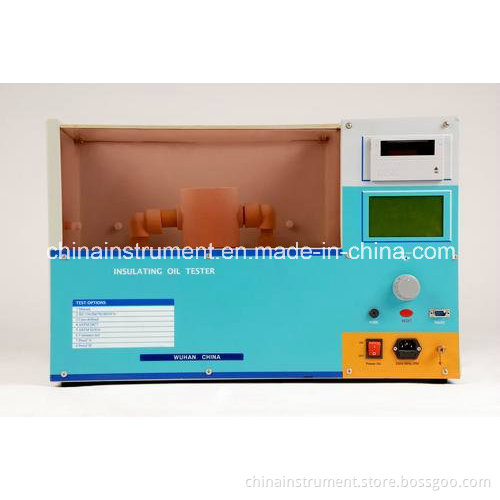

Gdyj-502 Fully Automatic Insulating Oil Dielectric Strength Tester

GDYJ-502 Fully Automatic Insulating Oil Dielectric Strength Tester
Introduction:
GDYJ-502 Fully Automatic Insulating Oil Dielectric Strength Tester for dielectic strength test is a professional instrument for breakdown voltage test of insulating oil.
Test Standards:
1. IEC60156
2. IS6792
3. BS5874
4. ASTM D1816
5. ASTM D877

Functions:
V Breakdown test of user-defined
V Proof test
V IEC60156/IS6792/BS5874 test
V ASTM D1816 standard test
V ASTM D877 standard test
V 5 minutes standard test
V Manual test
V Calibration interface for customers
V Uploading data to PC and making word report automatically.
V Result print

Characteristics:
1. Automatic determination.
2. Easy operation.
3. Stable performance and long life use.
4. Breakdown test of user-defined.
5. Proof test.
6. Fast test(5 minutes standard test).
7. Calibration interface.
8. PC connecting work and making word report.
9. Lcd display.
10. Built-in printer
Technical Parameters.
1 Output Voltage: AC 0V~100KV
2 Voltage Rising Rate: 0.5/2/3/5Kv/s± 5%
3 Test Times Setting: 9 times
4 Stirring Time Setting: 0~999s
5 Waiting Time Setting: 0~999s
6 Test Error: 3%RDG+0.3%FS
7 Storage Capacity: 100 group
8 Power Supply: AC220V± 10% 50Hz/60Hz
9 Environment Temperature: 0~50° C
10 Relative Humidity: ≤ 85%RH
11 Dimension: 620× 430× 330mm
12 Weight: 41kg
