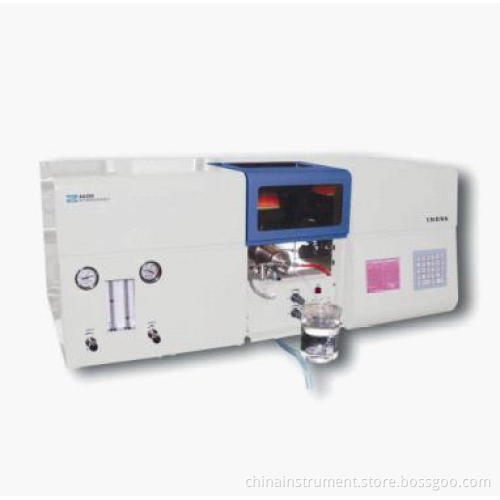

Gd-320n Atomic Absorption Spectrophotometer Aas

Characteristics A
1. Build-in computer data processing and LCD: Adopting highly integrated microdigital circuit, which is stable and reliable with the functions of integral holding,
Peak height and area, auto zero adjusting, deuterium lamp and background, multilinear and nonlinear curves fitting, various parameters and working curvesdisplayed in screen and report printing, etc. It is equipped with interface for
Externally linking PC.
2. Good basic line stability: Doublebeam system of optimized design can automatically compensate the light s ource drift and wavelength drift caused by the variation of temperature (with the function of the eliminating the affection of wavelength drift on the base line stability) and electronic circuit drift so as to reach a good basic line stability. The cathode lamp needs not be preheated for long time and sample can be analyzed immediately. It is the preferable instrument chosen by users to conduct analysis of multiple kinds of elements and fast analysis of samples.
3. High precision of measurement: Gas path system is equipped with precision
Pressure stabilizing and current stabilizing devices to reach stable flame and low
Noise. Specially designed fine light beam passes through the flame to ensure a high
Precision analytical test and low characteristic concentratio
4. Optical path of high energy: A total reflection system is adopted to eliminatecolordifference in full range. By means of chemical conversion, a round light spot of the light source becomes a long light spot, which enters into the slit. Therefore the light flux of double beam is enhanced. The burner is made of new type titanium alloys, anticorrosive and fast thermal equilibrium. It meets the requirement of measurement sensitivity without watercooling.
6. Multifunctional analysis mode: For methods of flame absorption, flame emission, graphite furnace atomic absorption and hydride generation.
7. Safe and reliable gas path system: Special devices of quick gas conversion and safety protection can be used to analyze aiacetylene flame.
8. Complete set of accessories: To be supplied with the instrument and ready for use after they are purchased.
Characteristics B
1. Lightsource system: Hollow cathode lamp power supply: With adjustable current Deuterium Lamp power supply: With fixed current
2. Optical system: Double beam total refection system, C-T type monochromator Flashing wavelength: 250nm
3. Flame atomization system: Interchangeable titanium alloy burner of 10cm and 5cm slits. Gas path is equipped with pressure indication, high precision voltage stabilizing flow adjustment, fast conversion of air and nitrous oxide, gas supply cut off, power cut off, prevention of flashback and logic interlock protection devices.
4. Signal processing: Absorptance, concentration, emission and emission concentration; Standard curves: Linear regression, curve fitting and multipoint standard calibration. Average value, standard deviation, relative standard deviation and correlation coefficient can be worked out. Standard curves, atomic absorption peak diagram, spectrum outline sketch, data as well as instrument parameters list and analytical reports can be displayed and printed out.
Technical Specifications
1. Working spectral range: 190-900nm
2. Wavelength accuracy: ≤ ± 0.5nm
3. Wavelength repeatability: ≤ 0.3nm (single direction)
4. Spectrum bandwidth: 0.2nm, 0.4nm, 0.7nm, 1.4nm, 2.4nm, 5.0nm
5. Resolution: <40%
6. Base line stability: ± 0.004ABS/30min
7. Characteristic concentration of copper: ≤ 0.04mg/ml/1%
8. Detection limit of copper: ≤ 0.008mg/ml
9. Background calibration ability: Greater than 30 times.
10. Standby Interface: RS 232
11. Instrument power supply: 220V, 3A, 50Hz
