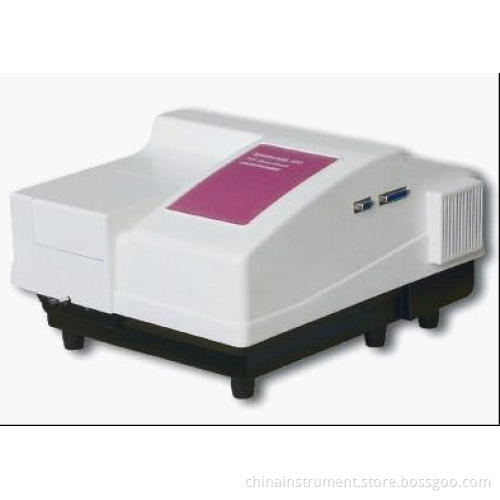

Gd-S410 Nir Spectrophotometer / Night Time Ozone Profile Spectrophotometer

Features
1. Transmission NIR, mainly used for liquid samples qualitative and quantitative analysis, applies to gasoline, drinks, milk and other areas of nutrients, water chemistry and other physical properties of the rapid non-destructive analysis determination.
2. Single-channel whole spectrum scanning.
3. Easily updated.
4. Fast scan, wavelength calibrates time from 900nm to 1700nm less than 2 minutes.
5. Built in SCM technology, auto 0% and auto background subtraction.
Applications and Features
Application field: Liquid dope samples(gasoline, drink and milk, etc. )
Optical system: Grating monochromator
Detector: InGaAs
Interface: RS232 serial port
Specifications
1. Wavelength Accuracy: ± 1nm
2. Wavelength Reproducibility: ≤ 1nm
3. Wavelength Scanning Interval: 4nm or 8nm or 16 nm
4. Wavelength Range: (900-1700)nm
5. Absorbance Reproducibility: 0.002A (at 0.4A)
6. S/N≥ 103 (at 1500nm)S
7. Canning Time: ≤ 2mins
Standard Package
Main instrument 1 set
Power cord 1 pc
Data processing software package 1 set
RS-232C serial communication cable 1 pc
User manual 1 pc
Packing list 1 copy
Product quality certificate 1 copy
Fuse(2A) 2 pcs
1cm quartz square sample cell 1 pair
1cm cell holder 1 pc
Optional Spare Parts and Accessories
Laptop 1 pc
Carton Dimension L*W*H(mm)
530*470*300
Weight(Kg)
N. W.: 10 G. W.: 12
