Introduction:

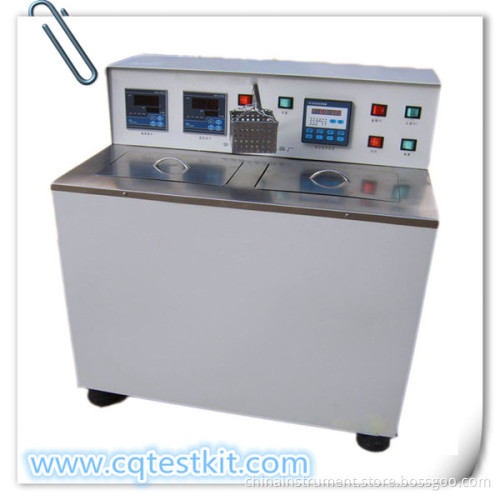

V GD-501 low-temperature water bath combines PID control technology and compressor refrigeration system, which made it as a high precision constant temperature water bath.
V It adopts microcomputer to control temperature, so temperature control precision is high.
V It can be used to test insulation resistance and voltage withstand value of insulation wire;
V The volume and capacity can be customized according to customers' requirement;
Main Features:
V Control panel: Digital display, simple to set up, easy to operate, the temperature can be adjusted, with alarm function.
V Advanced temperature controller: Adopts PID temperature control; With temperature setting and measuring function; Sensor: PT-100 platinum RTD sensor.
V Cooling system: Adopts famous Chinese brand refrigeration systems, cooling effect is remarkable, and with long service life, particularly suitable for large-capacity cooling tank (Mean while, French brand"TAIKANG" refrigeration systems is optional).
V Heating system: Three groups of 3KW special heating pipes, each can be individually controlled, which is convenient for users to choose different heating power according to different requirement.
V Perfect safety device: Temperature control protection and alarm function. If temperature suddenly go up to 2C above the constant temperature, the machine will automatically stop heating; Over current protection function.
V External circulation loop interface(optional): If customer does not need this interface, we will not reserve it when manufacturing.
Specifications:
V Bath size: 700*500*430mm;
V Liner size: 700*700*430mm;
V Whole size: 780*780*1130mm(Vertical type), 1400*780*630mm(Horizontal type);
V Temperature control range: 10~50C, micro-computer control temperature;
V Temperature accuracy: ± 0.5C;
V Heating power: 9KW, 3 groups, 3KW/group, each group can be controlled separately;
V Cooling power: 1.5KW;
V Cooling method: Air cooling;
V Water circulation method: Inside and outside circulation; Flow: 30L/min;
Circulation pump: Good quality stainless steel muted pump;
V Timing range: 1~9999min/hour;
V Power voltage: 380V, 50Hz;
Material: Outer case: 1.5mmgood quality cold plate electrostatic plastic; Liner: 1.5mm good quality SUS304. The whole machine is beautiful and durable;
