Zj Series Closed Mobile Transformer Two Stage Vacuuming Machine (ZJ)
- Payment Type:
- L/C, T/T, Western Union, Paypal, Cash
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Chongqing, China |
|---|---|
| Payment Type: | L/C, T/T, Western Union, Paypal, Cash |
Product Description
Product Description

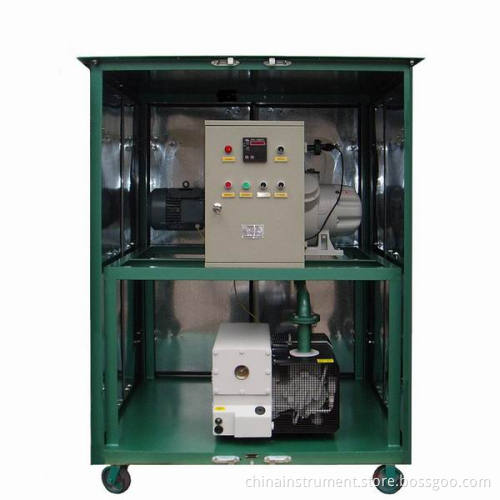

ZJ-1200 Closed Mobile Transformer Two Stage Vacuuming Machine
1. Main Specifications
v Air speed: 4320m3/h(1200L/s)
v Air level: 2 stages
v Limit Vacuity: ≤1 Pa
v Connection Diameter: 80
v Noise: <80 dB(A)
v Cooling type: air cooling
v Working power: 3 phase -380-420Vac/ 50 Hz
v Power: 27kw
v Size:250×175×200cm
v Weight: 2200Kg
2. Others:
v The whole equipment was made with Q235A steel
v Light: explosion-proof light (one set)
v Equipment sheath: 1set (lifting lug is available for vertical loading )
v We Selected gauge of LEYBOLD from germany up to bidding documents.
v Standard flange connections
v Words on both sides of the container: NO.1 Engineering Branch of Xibei Power Construction Corporation
3. Features:
v This set is fast in startup and pumping and simple in operation.
v We select imported backing sliding-vane rotary vacuum pump and Roots blower pump manufactured by LEYBOLD croporation in germany. They are reliable in quality, large in air-pump quantity, high in vacuum degree, low nosie and can continuously operate for 24H (high cost performance)
v This equipment is roots vacuum air-pump sets, roots pump is its main pump, and sliding-vane rotary vacuum pump is its backing pump. Between those two pumps, there is a electromagnetic vacuum gas charging valve which opens and closes with the same change of backing pump. We set vacuum gauge and valve in the gas inlet (including filter) in order to accurately observe the left gas in the pumped container and control the startup of the roots pump.
v We select imported resistance digital-display vacuum gauge, it is accurate in digital display, convenient in reading and carries out the whole sets automatically self-control through cooperating with other components.
v This set contains check valve in case the pumped container is damaged because the oil in the vacuum pump is reversely in taken by the pumped container when shut-down or power failure suddenly
v Phase order protection: this set has the Phase order protection function so there will be no vacuum pump reversal.
1. Main Specificationsv Air speed: 4320m3/h(1200L/s)
v Air level: 2 stages
v Limit Vacuity: ≤1 Pa
v Connection Diameter: 80
v Noise: <80 dB(A)
v Cooling type: air cooling
v Working power: 3 phase -380-420Vac/ 50 Hz
v Power: 27kw
v Size:250×175×200cm
v Weight: 2200Kg
2. Others:
v The whole equipment was made with Q235A steel
v Light: explosion-proof light (one set)
v Equipment sheath: 1set (lifting lug is available for vertical loading )
v We Selected gauge of LEYBOLD from germany up to bidding documents.
v Standard flange connections
v Words on both sides of the container: NO.1 Engineering Branch of Xibei Power Construction Corporation
3. Features:
v This set is fast in startup and pumping and simple in operation.
v We select imported backing sliding-vane rotary vacuum pump and Roots blower pump manufactured by LEYBOLD croporation in germany. They are reliable in quality, large in air-pump quantity, high in vacuum degree, low nosie and can continuously operate for 24H (high cost performance)
v This equipment is roots vacuum air-pump sets, roots pump is its main pump, and sliding-vane rotary vacuum pump is its backing pump. Between those two pumps, there is a electromagnetic vacuum gas charging valve which opens and closes with the same change of backing pump. We set vacuum gauge and valve in the gas inlet (including filter) in order to accurately observe the left gas in the pumped container and control the startup of the roots pump.
v We select imported resistance digital-display vacuum gauge, it is accurate in digital display, convenient in reading and carries out the whole sets automatically self-control through cooperating with other components.
v This set contains check valve in case the pumped container is damaged because the oil in the vacuum pump is reversely in taken by the pumped container when shut-down or power failure suddenly
v Phase order protection: this set has the Phase order protection function so there will be no vacuum pump reversal.
